PX4600-020AV Solid State Isolated Transducers in a Transistor Case

0 to 20 psi, Absolute Pressure

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
PX4600 020 AV Solid State Isolated Transducers in a Transistor Case 14204

 OMEGA's PX4600 Series consists of accurate, highly reliable pressure transducers suitable for printed circuit board mounting. The small size and light weight of the PX4600 tranducers make them ideal for tough vibration and shock environments. The sensor is a small silicon chip with 4 diffused silicon strain gages. Laser-trimmed resistors provide excellent temperature compensation from -54 to 121ºC (-65 to 250°F), and users can adjust zero balance and span to tight tolerances. The unusually high performance of this transducer comes from a 4-active arm bridge sensor using a micromachined diffused silicon diaphragm and proprietary thin-film media and dielectric isolation barriers.


• Small, Light Weight, OEM Package
• Solid State Media Isolation Suitable for use with Most Industrial Fluids and Oils
• Broad Temperature Compensated Range of -55 to 121°C Yields High Stability with Changing Temperatures
• Electrical Isolation to 100 MOhms Assures Long Term Reliability
Specifications
Electrical Excitation10 Vdc
Output30 mV ±10% @ 10 Vdc
Zero Balance0 mV ±5% FSO
Input Resistance2000 Ω minimum
Output Resistance1000 to 1500 Ω Dielectric Isolation Resistance: 100 MΩ min @ 50 Vdc applied between the case or conductive media and the bridge circuit
Performance
Accuracy±0.25% FSO combined linearity, hysteresis, and repeatability
Sensing Element4-active-arm bridge using a micro-machined diffused silicon diaphragm sensor and thin-film media and dielectric isolation barriers.
Temperature SensorOutput resistance @ 24°C (75°F) 900 to 1500 Ω
Temperature Coefficient8% min, 10% max per 55.5°C (100°F)
Environmental
Operating Temperature-55 to 150°C (-67 to 300°F)
Compensated Temperature-55 to 121°C (-67 to 250°F)
Thermal Effects
Zero±0.036% FSO/°C
Span±0.036% FSO/°C
Vibration SensitivityAt 35 g peak sinusoidal vibration from 10 Hz to 2000 Hz (½' D.A.), the output shall not exceed 0.04% FSO/g for 15 psi range, decreasing to 0.005% FSO/g for 100 psi and above.
Natural Frequency>35 kHz for 100 psi range
Shock100 g, 11 ms half sine wave without damage
MTBFTypical 100,000 hours @ 55°C (131°F), fixed-wing aircraft service
Pressure
Standard Ranges0 to 15, 20, 50,100, 200, 300 psi gage and absolute pressure
Proof Pressure250% rated pressure, 500 psi max, will not cause changes in performance beyond specified tolerance
Burst Pressure300% rated pressure, 500 psi max MECHANICAL
Wetted PartsNitride, Pyrex® glass, epoxy and Kovar®
Weight5 g (0.2 oz) maximum

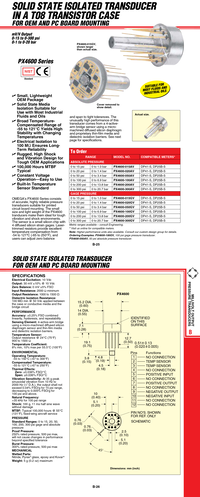

  • Thumbnail of document Data Sheet - PX4600-020AV Solid State Isolated Transducers in a Transistor Case
