Dwyer

RSM Room Status Monitor

Complete system including a backlit RGB LCD display with a graphic user interface, audible and visual alarm

Starting at
$3,584.21CAD
Have questions? We're here to help!
Have questions? We're here to help!
Configure

Series RSM Room Status Monitor is designed for critical low differential pressure applications that require stringent pressure monitoring and alarming. The Series RSM can be configured to monitor positive or negative pressure in protected environments and hospital isolation rooms per CDC guidelines. The RSM is a complete system with a graphic user interface which enables access to pressure, security, calibration, and alarm setup. The RSM has a NEMA 1 (IP20) rated fire retardant plastic for indoor applications.

• Accurately monitor protective environments for negative or positive pressure ensuring safety and reducing risk of catastrophic events
• Audible and visual alarm provides immediate local alerts allowing corrective action to be taken quicker to eliminate the problem from becoming widespread
• Password protected set up menu helps to insure no errors by untrained personnel
• Optional BACnet communication from devices provides integration into building control system for automated control and centralized monitoring and alarming




ServiceAir or nonconductive, nonexplosive gases
Accuracy± 0.5% FS
Temperature Limits32°F - 120°F (0°C - 50°C)
Humidity Limits5% - 95% RH, Non-condensing
Thermal Effects± 0.03% FS/°F (± 0.05% FS/°C)
Pressure Limits± 15 in W.C. (± 3.7 kPa)
Supply VoltageOrder Code A (24 VAC): 18 - 32 VAC, 50 - 60 Hz.
Order Code B (120 VAC): 85 - 265 VAC, 50 - 60 Hz.
Main supply voltage fluctuations up to 10%
Power Consumption (voltage output)5 W
Output SignalSelectable 4 - 20 mA (2-wire), 0 - 5 VDC (3-wire), or 0 - 10 VDC (3-wire)
Switch TypeSPST
Loop Resistance (4-20 mA output)0 Ω - 510 Ω
Electrical ConnectionRemovable terminal block
Process ConnectionsBarbed fittings for 3/16 in ID tubing
Enclosure RatingNEMA 1 (IP20) rated for indoor applications
HousingFire retardant plastic
MountingMount to standard double gang metal electrical box using 4 in x 4 in plaster ring adapter
Dimensions (H x W x D)8 in x 5.4 in x 1.8 in (20.3 cm x 13.7 cm x 4.1 cm)
Weight1.5 lb (680 g)
CommunicationsBACnet MSTP ASC optional
Agency ApprovalCE, CSA

• Hospital Isolation Wards
• Pharmaceutical
• Manufacturing
• Clean rooms
• Research labs
• Animal facilities


  • Thumbnail of document Manual - RSM Room Status Monitor
    Download

    Manual - RSM Room Status Monitor

    Download
  • Thumbnail of document Data Sheet - RSM Room Status Monitor
    Download

    Data Sheet - RSM Room Status Monitor

    Download

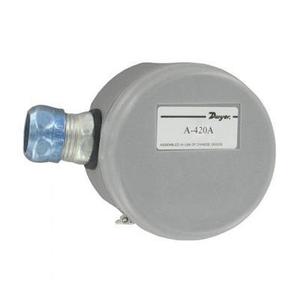

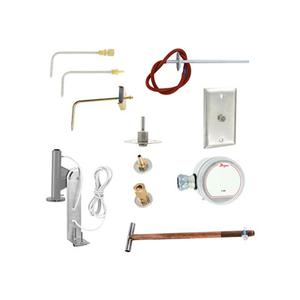

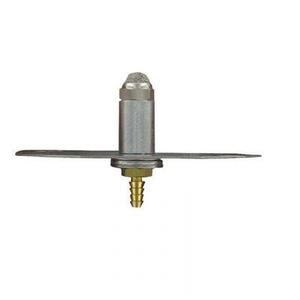

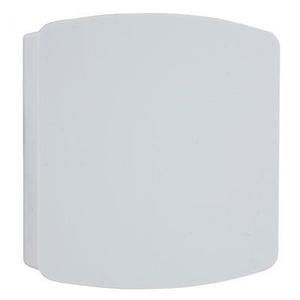

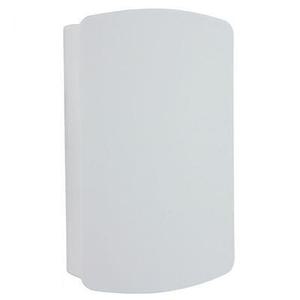

Accessories
