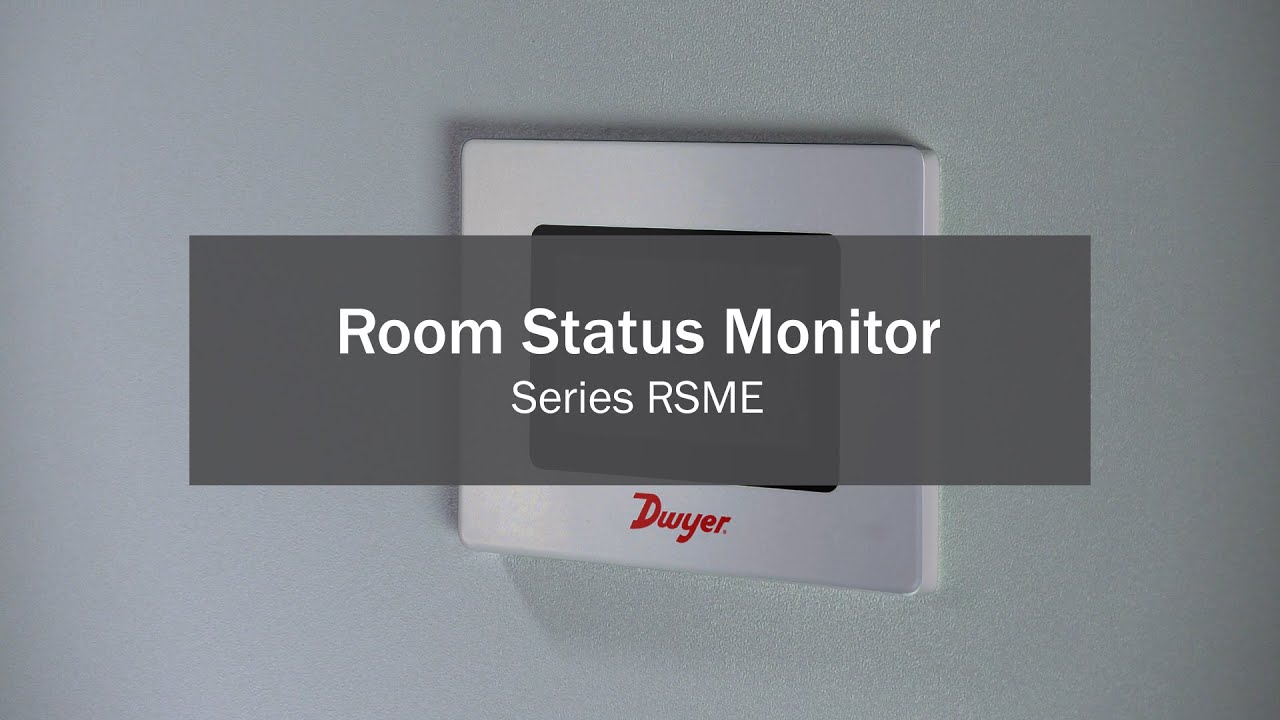

RSME Room Status Monitor

Name: RSME Room Status Monitor
SKU: placeholder-rsme-room-status-monitor
Price: 818.70 CAD
Availability: InStock

Designed for low differential pressure applications that require stringent pressure monitoring and alarming

Starting at

$818.70CAD

Have questions? We're here to help!

Call

Configure

Used in

The Series RSME Room Status Monitor is designed for low differential pressure applications that require stringent pressure monitoring and alarming. It can be configured to monitor positive or negative pressure in clean rooms, hospital isolation rooms, laboratories, and vivariums. The RSME is a complete system with a touchscreen graphical user interface which enables access to pressure, humidity, temperature, air change, security, door status, calibration, and alarm setup. The graphical display color changes allow a clear determination of when the parameters are operating within the acceptable range (green), caution range (yellow), or have gone outside the acceptable operating range (red). The RSME room status monitor comes standard with BACnet MS/TP and Modbus® RTU communications.

• User configurable graphical interface

• Monitors up to 3 rooms with a single unit

• Displays up to 4 parameters including pressure, relative humidity, temperature, air change, and/or door status

• Shallow mounting depth of 1.1" (27.5 mm) allows for flush mount installation in areas with space constraints

• Full color 4.3" touchscreen LCD incorporates color status indication: green for good, yellow for warning, and red for alarm

• Easy-to-clean optional brushed stainless steel bezel

• BACnet MS/TP and Modbus® RTU communication is standard

• Includes RSME, junction box, and USB-C/USB-A flash-drive

Compliance	BTL, CE.
Weight	13.6 oz (385.6 g).
Audible Alarm	69.1 dB 10 cm from display.
Communications	Modbus® RTU, BACnet MS/TP.
Display	4.3" (10.9 cm) color TFT LCD, dimmable; 480 x 272 resolution.
Electrical Connection	Removable terminal block.
Power Consumption	2.64 W max.
Zero and Span Adjustments	Adjustable via touchscreen.
Temperature Units	°F and °C.
Selectable Pressure Units	Pa, kPa, cm w.c., mm w.c., and in w.c.
Power Requirements	24 VAC/VDC.
Ambient Temperature Limits	32 to 122°F (0 to 50°C).
Outputs	One (1) digital output (DO) rated 5 A @ 30 VDC; One (1) 4-20 mA or 0-10 V (user selectable) corresponding to internal pressure or retransmission of any input.
Inputs	Two (2) user-selectable 4-20 mA, 0-5 VDC, or 0-10 VDC; USB type C used for cloning programming; One (1) digital input for door status.
Process Connection	Barbed, fits 1/8" and 3/16" (3 mm and 5 mm) ID rubber or vinyl tubing.
Accuracy	±0.5% RSS (includes non-linearity: ±0.49% BFSL, hysteresis: ±0.05% and non-repeatability: ±0.05%), or ±1% RSS (includes non-linearity: ±0.99% BFSL, hysteresis: ±0.05% and non-repeatability: ±0.05%), after 1 hour warm-up period.
Pressure Limits	1.5 psig.
Wetted Materials	Front: PMMA window with IP65 rating; Back housing: ABS UL 94 V-0.
Measurement Technology	Piezoresistive pressure sensor.
Service	Air
