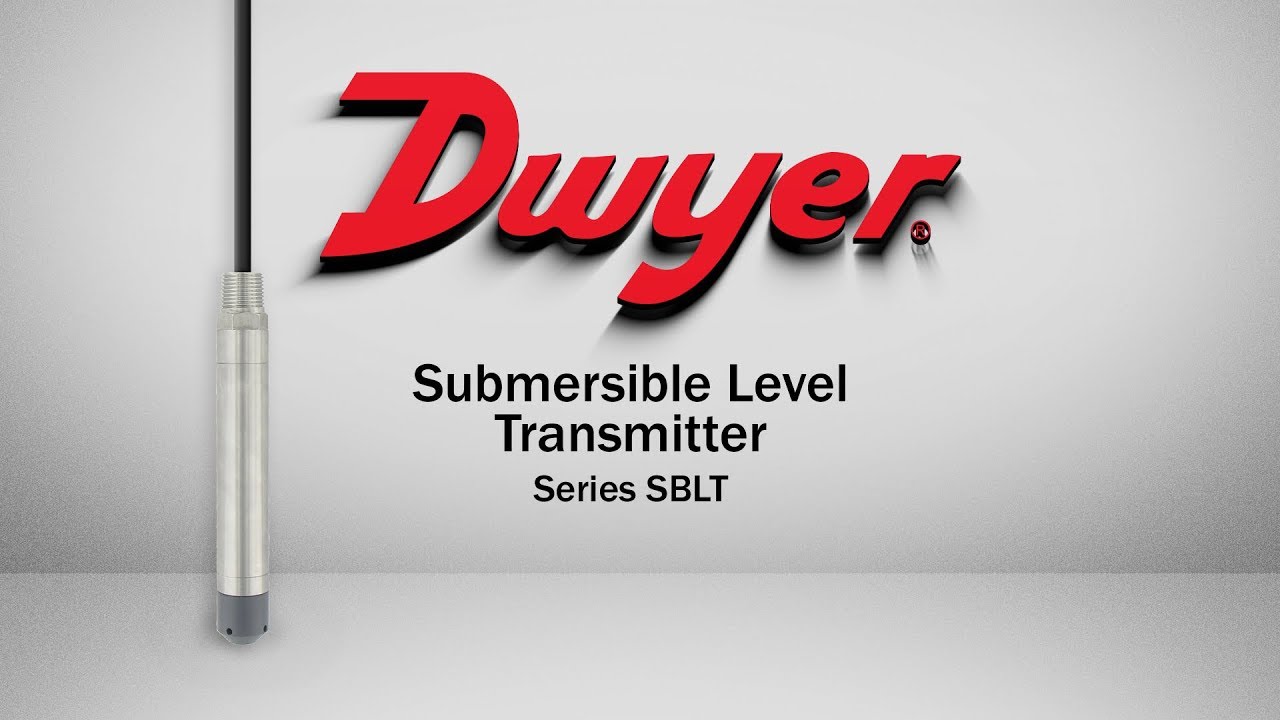

SBLT2 / SBLTX Submersible Level Transmitter

Name: SBLT2 / SBLTX Submersible Level Transmitter
SKU: placeholder-sblt2-sbltx-submersible-level-transmitter
Price: 829.73 CAD
Availability: InStock

Perfect for ground water and wells, lightning protected or intrinsically safe options available

Starting at

$829.73CAD

Have questions? We're here to help!

Call

Configure

Used in

SBLT2 SBLTX Submersible Level Transmitter 05194

SBLT2 SBLTX Submersible Level Transmitter 28475

SBLT2 SBLTX Submersible Level Transmitter 63380

SBLT2 SBLTX Submersible Level Transmitter 8ccc3

SBLT2 SBLTX Submersible Level Transmitter f398d

The SERIES SBLT2 & SBLTX Submersible Level Transmitters are manufactured for years of trouble free service. These series measure the height of liquid above the position in the tank referenced to atmospheric pressure. The transmitter consists of a piezoresistive sensing element, encased in a 316 SS housing.

• Meets application requirements with slim design with bullet nose design which protects the diaphragm from damage

• Increased life with lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on SBLT2 models

• Eliminates particulate or water droplets from entering the transducer using maintenance-free filter

• Peace of mind with UL approved intrinsically safe on SBLTX models for use in hazardous locations when used with proper barrier

• Decrease ownership cost with durable, 270 lb tensile strength shielded and vented cable and excellent chemical compatibility

• Flexible installation options with NPT connection to rigidly install in a pipe/conduit or use a A-625 hanging loop to attach a chain to remove from the installation

• Minimal downtime with standard 72 hour lead time

Service	Compatible liquids
Wetted Materials	316 SS, 316L SS, Epoxy; Cable: Polyurethane or ETFE; Bullet Nose: PVC
Accuracy	± 0.25% FS
Temperature Limit	SBLT2: 0°F - 150°F (-18°C - 66°C); SBLTX: 0°F - 176°F (-18°C - 80°C)
Compensated Temperature Range	SBLT2: 0°F - 140°F (-18°C - 60°C); SBLTX: 0°F - 176°F (-18°C - 80°C)
Thermal Effect	± 0.02% full scale/°F
Pressure Limit	2X FS
Power Requirements	SBLT2: 10 - 30 VDC (≤ 1000 ft (305 m) of cable); SBLTX: 10 - 28 VDC
Output Signal	4 - 20 mA DC, 2-wire
Response Time	50 ms
Max. Loop Resistance	900 Ω at 30 VDC
Electrical Connections	Wire pigtail
Mounting Orientation	Suspended in tank below level being measured
Electrical Protection	SBLT2: Lightning and surge protection; SBLTX: None
Weight	2.2 lb (1.0 kg)
Agency Approvals	SBLT2: CE; SBLTX: CE, cULus intrinsically safe for Class I, Div. 1, Groups A, B, C, D; Class II, Div. 1, Groups E, F, G; Class III Div. 1. (According to control drawing 01-700797-00). *Only up to 196 ft (59.5 m) for ETFE cable and 333 ft (101.5 m) for polyurethane cable
