Dwyer

Series 783 3PDT Ice Cube Relays

15 Amp, 3PDT Operation

Starting at
$52.64CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Configure
Used in
Series 783 3 PDT Ice Cube Relays 11227
Series 783 3 PDT Ice Cube Relays 4c549

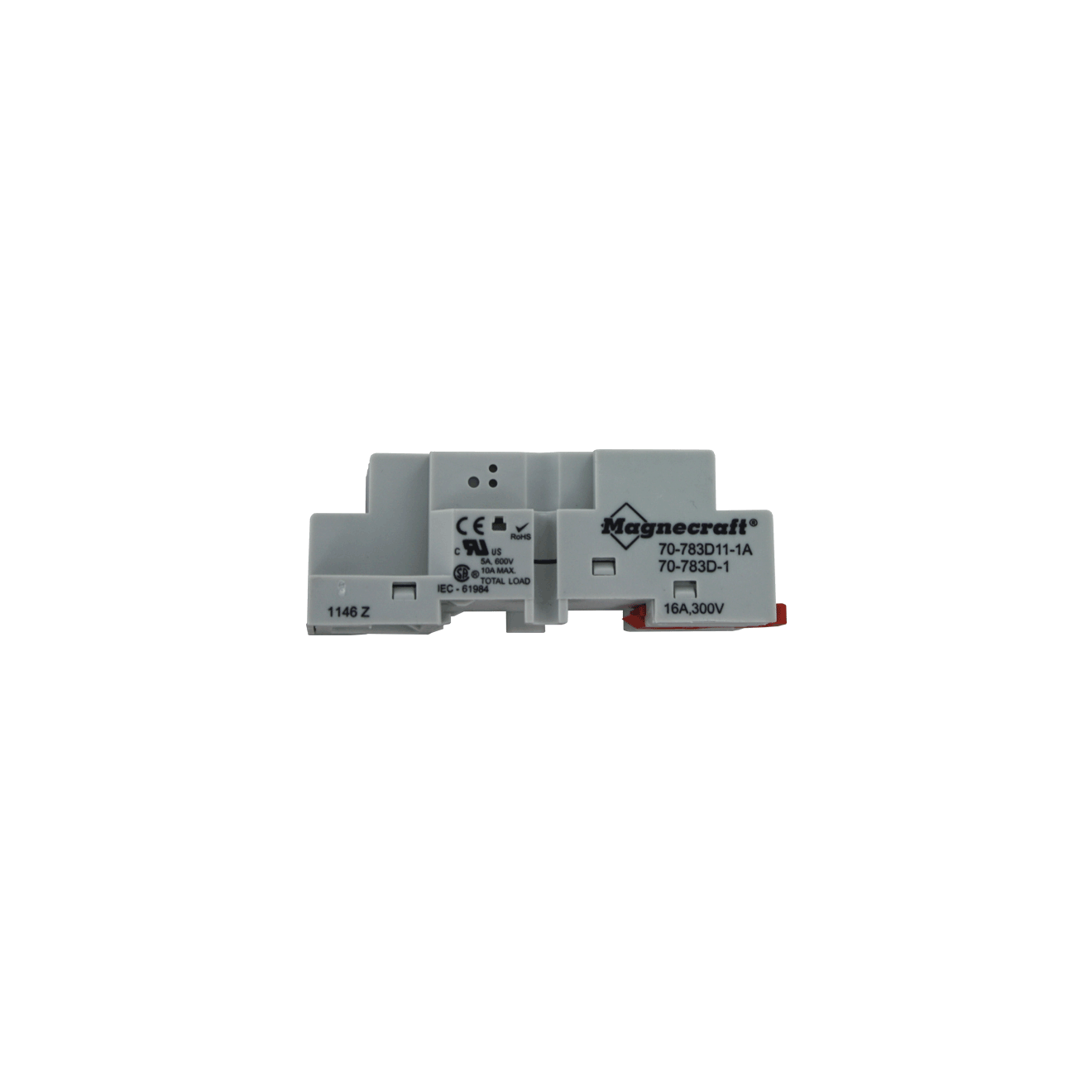

Series 783 3 PDT Ice Cube Relays 985f8

The Series 783 & 784 Ice Cube Relays are full-featured relays that can be used to handle loads up to 15 amps for AC or DC circuits. It features a flag status indicator and a LED status lamp to let the user know when the relay is activated. In order to differentiate between AC and DC actuated models, the push-to-test button is color coded and a removable lock-down lever holds the test button in place.

 • Quick installation and replacement using socket mounting

• Simplified diagnosis with flag and LED status indicators and color-coded push-to-test button
Operating and Load Voltage Range24 to 240 VAC; 24 VDC.
Electrical ConnectionSilver alloy plug-in contacts.
Switching OperationSilver alloy plug-in contacts.
Electrical Rating15 A @ 120 VAC 50/60 Hz; 12 A @ 277 VAC 50/60 Hz or 28 VDC.
Temperature LimitsStorage: -40 to 185°F (-40 to 85°C); Operation: -40 to 131°F (-40 to 55°C).
Power Consumption:1.5 VA; 1.4 W.
Cycle Life100,000 cycles (electrical); 10,000,000 cycles (mechanical).
HousingPlastic polycarbonate.
Weight2.1 oz (60 g).
Agency ApprovalsCE, CSA, cULus, cURus.
• Refrigeration compressor systems
• HVAC motor controls
• Water/wastewater pump control
