3-in-1 instrument possessing a digital display gage, control relay switches, and a transmitter with current output

This product is no longer sold. View active Product

Have questions? We're here to help!

Call

Used in

Also found in

Series DH3 Digihelic Differential Pressure Controller 02370 xl

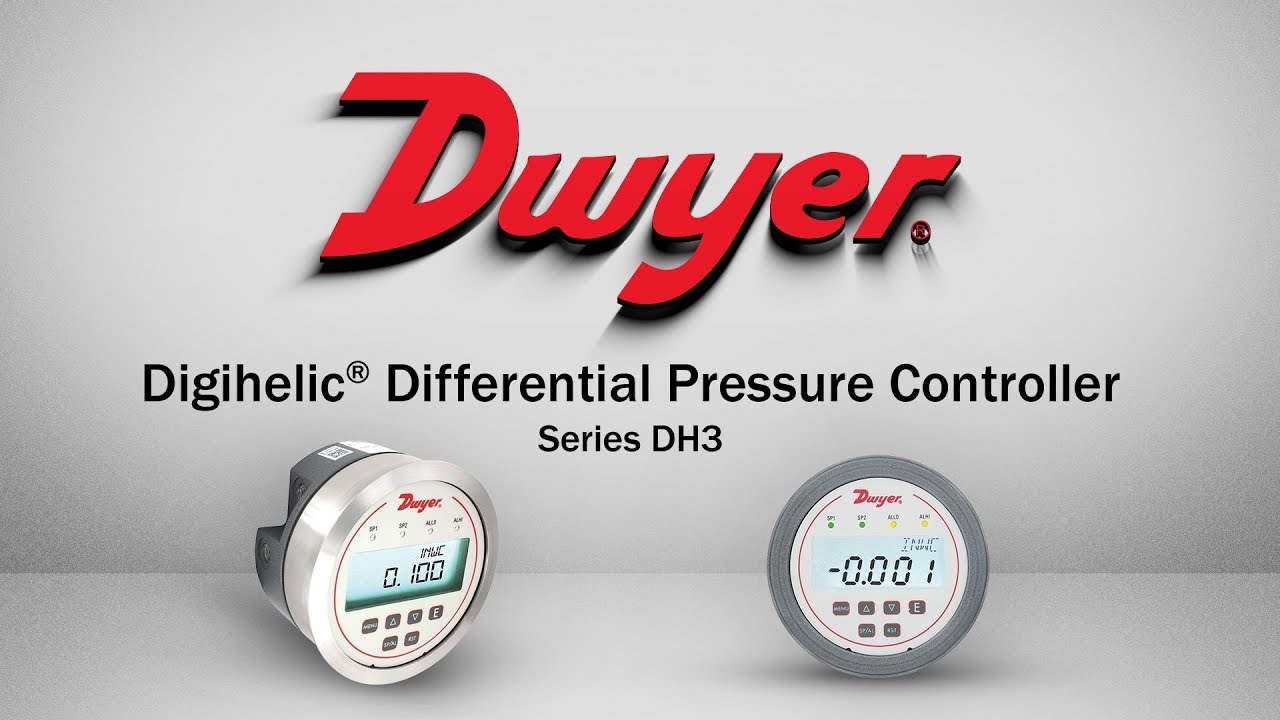

The Series DH3 Digihelic® Differential Pressure Controller is a 3-in-1 instrument possessing a digital display gage, control relay switches, and a transmitter with current output all packed in the popular Photohelic® gage style housing. Combining these 3 features allows the reduction of several instruments with one product, saving inventory, installation time and money. The Digihelic® controller is the ideal instrument for pressure, velocity and flow applications, achieving a 1% full scale accuracy on ranges down to the extremely low 0.25 in W.C. to 2.5 in W.C. full scale. Ranges of 5 in W.C. and greater maintain 0.5% F.S. accuracy. Bi-directional ranges are also available.

The Series DH3 Digihelic® controller allows the selection of pressure, velocity or volumetric flow operation in several commonly used engineering units. 2 SPDT control relays with adjustable deadbands are provided along with a scalable 4 - 20 mA process output.

Programming is easy using the menu key to access 5 simplified menus which provide access to: security level; selection of pressure, velocity or flow operation; selection of engineering units; K-factor for use with flow sensors; rectangular or circular duct for inputting area in flow applications; set point control or set point and alarm operation; alarm operation as a high, low or high/low alarm; automatic or manual alarm reset; alarm delay; view peak and valley process reading; digital damping for smoothing erratic process applications; scaling the 4 - 20 mA process output to fit your applications range and field calibration.

Please see Series AT2DH3 for ATEX approval.

• 3-in-1 instrument allows the reduction of several instruments with one product, saving inventory, installation time and money

• Full scale accuracy of 1.5% even on extremely low ranges, and 0.5% for ranges above 5 in w.c. provide for greater measurement precision

• Secure menu program provides access to device operation only for the right skill level

Service	Air and non-combustible, compatible gases
Wetted Materials	Consult factory
Housing Material	Die cast aluminum case and bezel
Accuracy	± 1.5% for 0.25 in W.C. and ± 0.25 in W.C. ranges Ranges 0.5 in W.C. to 5 in W.C. and corresponding bi-directional (except ± 2.5 in W.C.) ± 1%; All other ranges: ± 0.5% @ 77°F (25°C) including hysteresis and repeatability (after 1 hr warm-up)
Stability	< ± 1% per year
Pressure Limits	Ranges ≤ 2.5 in W.C.: 25 PSI; ± 2.5 in W.C., 5 in W.C.: 5 PSI; 10 in W.C.: 5 PSI; 25 in W.C.: 5 PSI; 50 in W.C.: 5 PSI; 100 in W.C.: 9 PSI
Temperature Limits	32°F - 140°F (0°C - 60°C)
Compensated Temperature Limits	32°F - 140°F (0°C - 60°C)
Thermal Effects	0.020%/°F (0.036/°C) from 77°F (25°C). For 0.25 in W.C. and ± 0.25 in W.C. ranges: ± 0.03%/°F (± 0.054%/°C)
Power Requirements	12 VDC - 28 VDC, 12 VAC - 28 VAC, 50 Hz - 400 Hz
Power Consumption	3 VA max
Output Signal	4 - 20 mA DC into 900 Ω max
Zero & Span Adjustments	Accessible via menus
Response Time	250 ms (damping set to 1)
Display	Backlit 4 digit LCD 0.4 in height LED indicators for set point and alarm status
Electrical Connections	15 pin male high density D-sub connection. 18 in (46 cm) cable with 10 conductors included
Process Connections	1/8 in female NPT. Side or back connections
Mounting Orientation	Mount unit in vertical plane
Size	5 in (127 mm) OD x 3-1/8 in (79.38 mm)
Weight	1.75 lb (794 g)
Agency Approvals	CE
SWITCH SPECIFICATIONS
Switch Type	2 SPDT relays
Electrical Rating	1 A @ 30 VAC/VDC
Set Point Adjustment	Adjustable via keypad on face

• SCFM flow in ducts

• Filter status

• Static pressures in ducts or buildings

• Damper control

• Fan control

Download
Data Sheet - Series DH3 Digihelic Differential Pressure Controller
Download
Download

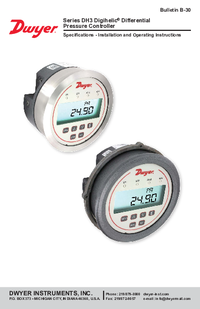

Manual - Series DH3 Digihelic Differential Pressure Controller
