Series SAH SMART Air Hood® Balancing Instrument

Name: Series SAH SMART Air Hood® Balancing Instrument
SKU: placeholder-series-sah-smart-air-hood-balancing-instrument
Price: 7382.48 CAD
Availability: InStock

The most accurate and easy to operate air flow hood on the market

Starting at

$7,382.48CAD

Have questions? We're here to help!

Call

Configure

Used in

Series SAH SMART Air Hood Balancing Instrument 02325

The Series SAH SMART Air Hood® Balancing Instrument is the most accurate and easy to operate air flow hood on the market. By using the included hood stand and wireless communications to the handheld, a single operator can balance a branch in less time than traditional balancing teams. Besides being lighter than most traditional capture hoods, the ergonomic design makes the Series SAH easy to maneuver, with less physical stress. The rugged polypropylene base hood features Quad Flow Design Technology for controlling air flow and minimizing back pressure, which yields superior measurement accuracy. The Wi-Fi direct communication gives reliable communication with a distance of up to 200 yards (183 m) between the hood and the handheld test instrument. The SMART Air Hood® Balancing Instrument includes the PredictAir™ Application Software which reduces the number of steps in the air flow balancing process using Predictive Balancing’s Express Balance mode. Predictive Balancing is a method of predicting the optimal flow set point for each register and the order in which they should be adjusted.

INCLUDED WITH THE SAH KITS:

• Handheld test instrument preloaded with SMART Air Hood® App

• 3" (0.9 m) extendable pole

• Handheld quick release pole adaptor kit

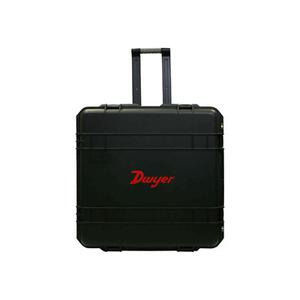

• SAH roller travel case with instrument available foam inserts

• Charging cables for SAH and handheld

• Lithium ion battery (not included in international versions)

• Installation and operating manual

• NIST traceable certificate

• Patent pending "Quad Flow Design Technology" directs the circulating air patterns to provide a more even air flow that minimizes backpressure enabling accurate readings
• Predictive Balancing is a process that guides the balancing technician on setting the optimal flow set point for each sequential terminal. With the PredictAir™ Application Software, the balancing process takes much less time than traditional air balancing methods
• The ergonomic design is much lighter and easier to work with than the existing bulky air hoods, providing greater maneuverability and less physical strain. One technician can complete the air balancing
• Wi-Fi direct wireless communication provides a range up to 200 yards (183 m)

Service	Air
Units	CFM, m³/h, l/s
Volume Flow Ranges	Supply: 40 CFM - 2000 CFM (68 m³/h - 3398 m³/h) (19 L/s - 944 L/s); Exhaust: 80 CFM - 2000 CFM (136 m³/h - 3398 m³/h) (38 L/s - 944 L/s)
Accuracy > 40 CFM	± 3% of reading, ± 7 CFM (11.9 m³/h) (3.3 L/s)*
Resolution	1 CFM (1.7 m³/h) (0.5 L/s)
Power Requirements	3.6 V NCR18650B MH12210 lithium ion battery, included, user replaceable or four (4) 1.5 V AA alkaline batteries (not included) user replaceable
Housing Material	Polypropylene
Weight	5.75 lb (2.6 kg)
Agency Approvals	CE, FCC, IC
Response Time:	1 s.
Wireless Protocol:	Wi-Fi direct low energy wireless technology.
Operating System:	SMART Air Hood® application software only available with factory supplied test instrument.
