The SGD 24-M-IP is a programmable panel meter featuring dual analogue inputs, alarm outputs and 2.4” TFT colour touchscreen display. It is housed in an IP67 / NEMA 6 rated enclosure with a rugged and scratch resistant window. Panel or enclosure installation of the finished module is simple, using the 32 mm nut and the IP67 connector supplied with the unit. Configured using the free PanelPilot M Software, choose from an ever-increasing number of configurations including bar-graph, tank level, analogue style and trend graphs. Then customise colours, text labels, units and input scaling before uploading to a display via USB.
Note that the SGD 24-M-IP does not feature touch-screen functionality and therefore is not compatible with configurations requiring touch-input.
• 2.4” colour TFT screen
• IP-67 and NEMA 6 rated
• Rugged and scratch resistant Corning® Gorilla® Glass window
• Supplied with free Windows design software, to setup and customise the display. Compatible with Windows XP, 2000, Vista and Windows 7
• Download meter applications from the ever expanding online library
• Programmable with the USB interface
• Simple and easy panel mounting solution
• IP-67 12-way connection
• Wide operating voltage of 4 V – 30 VDC
• 0 – 40 VDC measurement range
• 2 analogue inputs & 2 alarm outputs
• SPI and I²C
• 4 - 20 mA version available (SGD 24-M-IP420)
• Marine
• Energy
• Industrial
_14474_1-72_5f28a37dfffeac17d8504dfc1bc3d34b.png)
Accessories
![CABLE IP 12 W RA Cable 00571]()

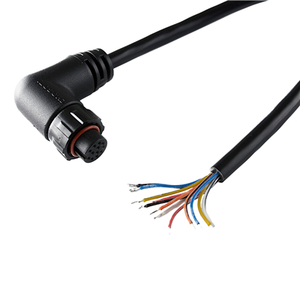

LascarCABLE IP-12W-RA Cable
