SLS Family Syringe Liquid Particle Sampler
Syringe Liquid Particle Samplers: SLS Family
The SLS Family of instruments are ideal for applications where precise, small-volume particle batch sampling is required, and where the sampler device cannot contribute contamination to the chemical sample.
The SLS-20 Syringe Liquid Sampler enables Chem 20™ or Chem 20-HI particle counters to operate in batch sampling applications. It is ideal for precise, small-volume sampling.
The system consists of an SLS-20 for either corrosive or non-corrosive liquids, all connections necessary to interface with a compatible Chem 20 or Chem 20-HI particle counter, and optional software.

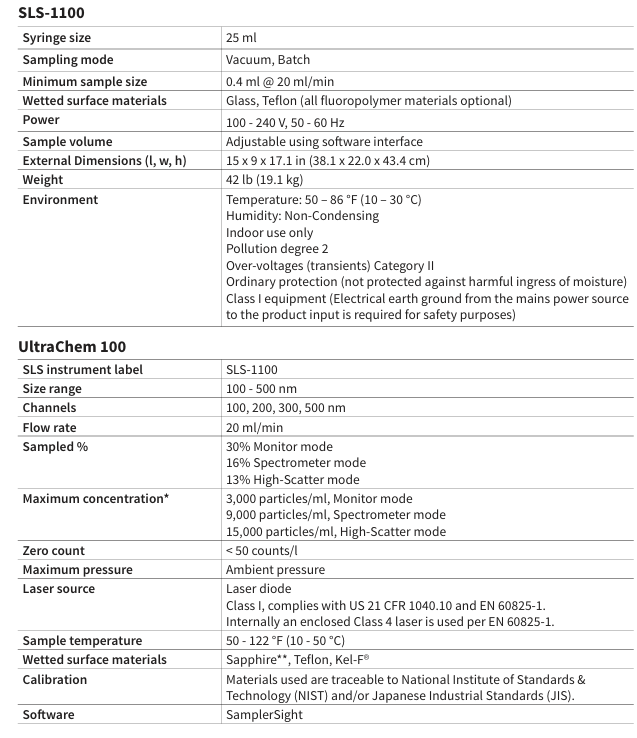

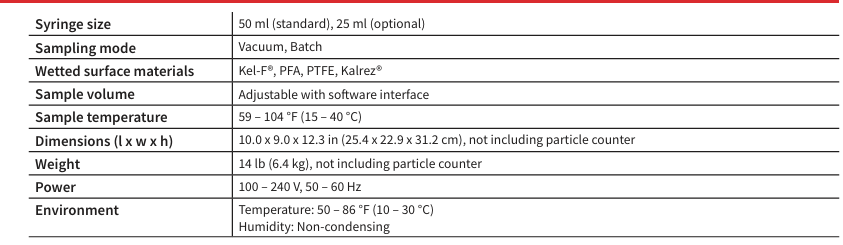

The SLS Syringe Sampling System is ideal for applications where precise, small-volume sampling is needed. The system consists of a syringe sampler for either corrosive or non-corrosive liquids, a particle counter for different sizing sensitivities, and software. A convenient naming system identifies the particle counter installed inside the instrument (see the Specifications table).
- Precise particle measurement
- Versatile - select various particle sensors and syringe sizes
- Cost-effective
- Easy-to-use
- Small sample volume - eliminates sample waste
- Prove PMS UltraChem particle sensors
- Menu-driven data collection - 1, 5, 10 and 25 ml
- Wetted materials compatible with corrosive chemicals
- Compact design with on-board particle sensor
SLS-20
- 20 nm sensitivity provides unmatched level of process, chemical and filter monitoring
- Fluoropolymer syringe standard for use with HF
- Minimal chemical volume used
- Fully automated system
- Menu-drive data collection
- Extremely accurate measurements
- Compatible with corrosive and non-corrosive liquids
- With SamplerSight software, includes data generation into pre-formatted report types and spreadsheets
- Internal leak detection
- Repeatable recipes for consistent sampling parameters
- Software for data collection and trending
- Optional password security
- Diverse applications in semiconductor and process chemical manufacturing
- Incoming quality measurement of process chemicals
- Point-of-process monitoring on process tools
- Testing and qualification of chemical components
- Outgoing chemical qualification testing
- Mechanical parts cleanliness testing
SLS-20
- Small volume chemical quality assurance
- Parts cleanliness testing
- Laboratory water sampling
- Industries: semiconductor, pharmaceutical, data storage, medical, aerospace, automotive
- Sampling chemical out of finished product packaging
- Sampling out of wet process tanks for process and filter monitoring
