OMEGA
SP-005-1 Link M12 Modular Thermocouple & RTD Temp. Smart Probe
Thermocouple and RTD Temperature Smart Probe
The Omega Link SP-005 Thermocouple and RTD Smart Probe provides an easy way to integrate your thermocouple and RTD probes to the Omega Link Ecosystem. The SP-005 accepts standard M12 thermocouples and RTDs through its M12 4-pin connector and Omega Link Smart Interfaces through its M12 8-pin connector. The optional M12-S-M-FM connector can be utilized to easily connect wire leads typically found on thermocouples or RTD probes to your SP-005.
The SP-005 supports up to 2 thermocouple inputs or a single 2, 3, or 4-wire RTD input.
Intuitive Configuration
Configure your Omega Link Smart Probe using SYNC’s intuitive configuration interface.
Edge Control and Built in I/O
The Omega Link SP-005 features 2 configurable digital I/O pins. These can be used for a myriad of applications including driving relays, physical alarms, or sensing dry contacts like door switches. The SP-005 can also be utilized as an edge controller, with autonomous independent decision-making capabilities to generate local alarms or provide control outputs based on sensor inputs.
Smart Core Enabled
Smart core is integral to all Omega Link Smart Probes. This powerful suite of advanced features enable plug and play connectivity, alarms and notifications, data assurance, data logging, and storage.
Smart Interface Modularity
Customize your Omega Link Ecosystem with modular Smart Interfaces that connect and transmit data from your Smart Probe to the Omega Link Cloud.
• 2x Thermocouple
• 1x RTD (2, 3, 4-wire)
• Software configurable through SYNC configuration software
• 2x Digital I/O
Accessories
![M12 C PVC 4 S M R F 2 M12 Cable 4 pin for Transmitters RTD Thermistor 13303]()
OMEGAM12C-PVC-4-S-M-R-F-2 M12 Cable, 4 pin , for Transmitters, RTD, Thermistor
DC Cable Assemblies for Probes, Sensors and Transmitters
This product is no longer available. Contact us at 800-567-8686 for alternative solutions.![M12 C PVC 4 S M R F 5 M12 Cable 4 pin for Transmitter RTD Thermistor 13304]()
OMEGAM12C-PVC-4-S-M-R-F-5 M12 Cable, 4 pin, for Transmitter, RTD, Thermistor
DC Cable Assemblies for Probes, Sensors and Transmitters
This product is no longer available. Contact us at 800-567-8686 for alternative solutions.![M12 8 T SPLIT M12 8 pin shielded T Splitter 13299]()

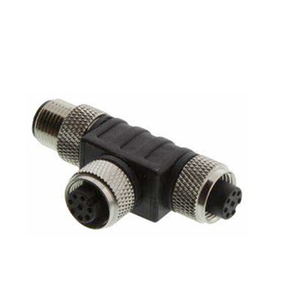

OMEGAM12.8-T-SPLIT M12-8 pin shielded T-Splitter
Smart Probe M12-8 pin shielded T-Splitter - enables access to I/O pins
Call Today!
800-567-8686Normally ships in 2-3 weeks![M12 8 S M FM M12 8 Pin Straight Plug 13300]()

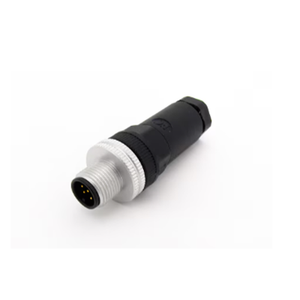

OMEGAM12.8-S-M-FM M12-8 Pin Straight Plug
M12-8 pin Straight Plug Field install connector with screw terminals
Call Today!
800-567-8686Normally ships in 2-3 weeks
