STR2 Step & Direction Steppers Drives w/3 inputs/1 output

Name: STR2 Step & Direction Steppers Drives w/3 inputs/1 output
SKU: placeholder-str2-step-direction-steppers-drives-w-3-inputs-1-output
Availability: InStock

Step and Direction Stepper Drives

Have questions? We're here to help!

Call

Used in

STR2 Step Direction Steppers Drives w3 inputs1 output 13982

The STR series stepper drive is a compact, powerful, digital step and direction drive available in three power ranges: 2 A/phase, 4 A/phase and 8 A/phase. The STR series is ideal for applications requiring basic step and direction control of a 2-phase step motor. STR drives feature advanced microstepping performance and sophisticated current control with anti-resonance. Anti-resonance electronically damps motor and system resonances, which improves motor smoothness and torque over a wide speed range.

All setup is done via dip switches and a rotary switch on the side of the drive, including motor selection, running current, idle current, and step resolution.

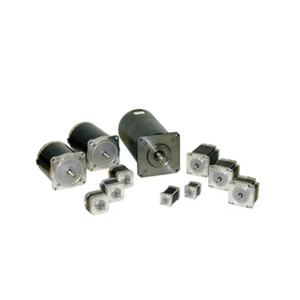

STR drives are available with a large family of compatible 2-phase step motors, selected to optimize performance of both the drive and motor.

• Sophisticated Current Control

• STR2: 2 A/phase

• STR4: 4 A/phase

• STR8: 8 A/phase

Power Amplifier Section (STR2)
Amplifier Type	MOSFET, dual H-bridge, 4 quadrant
Current Control	4 state PWM at 20 kHz
Output Current	Up to 2.2 A/phase, depending on motor selection
Switch Selectable % of Maximum Current	100%, 90%, 80%, 70%
Power Supply	External 12 to 48 Vdc power supply required
Idle Current Reduction	Reduction to 50% or 90%, switch selectable
Power Amplifier Section (STR4)
Amplifier Type	MOSFET, dual H-bridge, 4 quadrant
Current Control	4 state PWM at 20 kHz
Output Current	Up to 4.5 A/phase, depending on motor selection
Switch Selectable % of Maximum Current	100%, 90%, 80%, 70%
Power Supply	External 24 to 48 Vdc power supply required
Idle Current Reduction	Reduction to 50% or 90%, switch selectable
Power Amplifier Section (STR8)
Amplifier Type	MOSFET, dual H-bridge, 4 quadrant
Current Control	4 state Pwm at 20 kHz
Output Current	Up to 8 A/phase, depending on motor selection Switch
Selectable % of Maximum Current	100%, 90%, 80%, 70%
Power Supply	External 24 to 75 Vdc power supply required
Idle Current Reduction	Reduction to 50% or 90%, switch selectable
Controller Section
Mode of Operation	Step and direction, Cw/Ccw
Microstep Resolution	Switch selectable: 200, 200 smooth, 400, 400 smooth, 2000, 5000, 12800, 20000 steps/revolution
Speed Range	Depends upon selected resolution; amplifier is suitable for speeds up to 50 rps
Anti Resonance	Raises the system damping ratio; eliminates midrange instability and allows stable operation to 50 rps
Waveform	Allows for fine adjustment of phase current waveform harmonic content to reduce low-speed torque ripple in the range 0.25 to 1.5 rps
Digital Noise Filter	Step pulse input: 150 kHz or 2 MHz, jumper selectable
Self Test Switch Selectable	Rotates motor 2 revolutions in each direction
Control Inputs	Step, direction, enable, optically isolated; 4 to 30 Vdc, 5 to 15 mA.
Step Input	Min pulse width = 250 ns; max pulse frequency = 2 MHz
Fault Output	Photodarlington, 80 mA, 30 Vdc max; voltage drop = 1.2 Vdc max at 80 mA
Ambient Temperature	0 to 50°C (32 to 122°F) humidity 90% non-condensing
