TDFS2 Thermal Dispersion Flow Switch

Name: TDFS2 Thermal Dispersion Flow Switch
SKU: placeholder-tdfs2-thermal-dispersion-flow-switch
Price: 596.93 CAD
Availability: InStock

Non-Mechanical, Low Pressure Drop, Large Pipe Sizes

Starting at

$596.93CAD

Have questions? We're here to help!

Call

Configure

Used in

TDFS2 Thermal Dispersion Flow Switch 09561

TDFS2 Thermal Dispersion Flow Switch 08596

TDFS2 Thermal Dispersion Flow Switch 4fd66

TDFS2 Thermal Dispersion Flow Switch 68d87

TDFS2 Thermal Dispersion Flow Switch ce96a

TDFS2 Thermal Dispersion Flow Switch e00aa

TDFS2 Thermal Dispersion Flow Switch f0992

TDFS2 Thermal Dispersion Flow Switch f8632

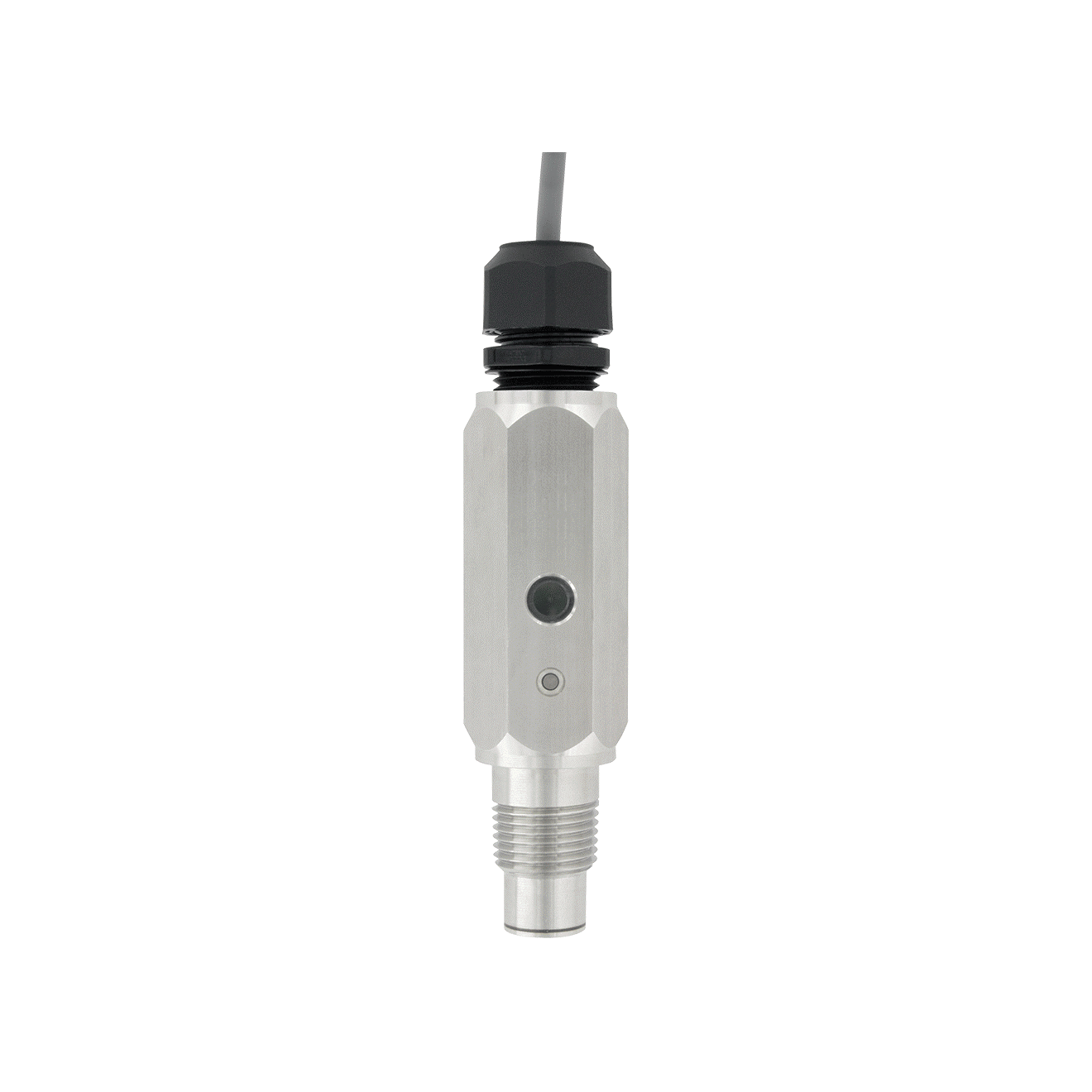

The Series TDFS2 Thermal Dispersion Flow Switch is a thermal flow switch that indicates whether the flow rate is above or below a user set flow rate. The unit incorporates two LED status indicators providing visual switch indication. The set flow rate (setpoint) is easily field adjustable with included magnet and the unit has both NO and NC NPN outputs.

• Better reliability and life expectancy than mechanical flow switches with no paddles or vanes to wear or break, no jams in the paddle movement, and no seals on movement assembly to wear or leak

• Long operation life, as it is not affected by empty pipe by avoiding overheating with heating above the process temperature and then cooling down to process temperature

• Lower system run cost due to low pressure drop with 10% insertion into the flow (e.g. 1/8" for 3/4" schedule 40 pipe)

Service	Compatible water-based fluids.
Wetted Materials	316SS
Pipe Range	1/2 to 1-1/2" (15 to 40 mm) or 2 to 10" (50 to 250 mm) (model selectable).
Set Point Range	0.5 to 10 ft/s (0.15 to 3.0 m/s).
Repeatability	0.07 ft/s (0.02 m/s) +3% of setpoint.
Typical Deadband	0.1 ft/s (0.03 m/s) +15% of setpoint.
Temperature Limits:	Ambient: 5 to 140°F (-15 to 60°C); Process: 5 to 140°F (-15 to 60°C), Storage: -40 to 185°F (-40 to 85°C).
Pressure Limits	300 psig (20.67 bar).
Response Time	Approx. 8 s.
Power Requirements	9 to 24 VDC.
Switching Current	400 mA, de-rate 5 mA/°C above 23°C.
Current Consumption	Average: 93 mA; Peak: 300 mA.
Electrical Connection	1/2' NPT female or cable gland with 4 conductor 22 AWG 6' (1.83 m) long (model selectable).
Process Connection:	1/2" NPT or BSPT male (model selectable).
Enclosure Rating	NEMA 4X (IP65).
Housing material	316 SS, 416 SS, polycarbonate, neoprene, and acrylated urethane.
Switch Type	1 NO NPN, 1 NC NPN.
Input Power and Protection	0.5A fuse (resettable) reverse polarity protected.
Switched Output Protection	0.5A fuse (resettable) reverse polarity protected.
Compliance	CE
