Madgetech

Temp101A Data Logger

Second to none in the compact, portable, & low cost data logger class that measures & records ambient temperatures from -40°C - 80°C

Buy now!
$118.50CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
Temp101 A Data Logger 01790
Temp101 A 2
Temp101 A 3
The Temp101A is a compact temperature data logger. This device can measure and record temperatures from -40 °C to 80 °C (-40 °F to +176 °F) with an accuracy of ±0.5 °C.

The Temp101A features user-specified high/low alarm limits and can even be programmed to start up to 18 months in advance. With a 10-year battery life and the ability to store up to 2,095,104 time and date stamped readings, the Temp101A is perfect for long-term studies.

The Temp101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

• 10 year battery life
• ± 0.5°C (± 0.9°F) Accuracy
• Multiple start/stop function
• Ultra high speed download
• 2 million reading storage capacity
• Memory wrap
• Precision RTD sensing element
• Battery life indicator
• Optional password protection
• Programmable high and low alarms
• Field upgradeable

Temperature SensorPrecision RTD Element
Temperature Range-40 °C to +80 °C (-40 °F to +176 °F)
Temperature Resolution0.01 °C (0.018 °F)
Temperature Calibrated Accuracy±0.5 °C (±0.9 °F)
Memory1,000,000 readings; software configurable memory wrap
330,000 readings in multiple start/stop mode
Reading Rate1 reading every second up to 1 reading every 24 hours
AlarmYes
Baud Rate115,200
LED IndicatorsRed & Green
Push-Button StartYes
Single/Multi-UseMulti-use
Battery Life10 years typical at a 15 minute reading rate
MaterialABS plastic
Dimensions1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm)
Operating Environment-40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing
Required Interface PackageIFC200
ApprovalsCE

Temperature

Temperature Sensor

Precision RTD Element

Temperature Range

-40°C - 80°C (-40°F - 176°F)

Temperature Resolution

0.01°C (0.018°F)

Temperature Calibrated Accuracy

± 0.5°C (± 0.9°F)

General

Memory

1,000,000 readings; software configurable memory wrap
330,000 readings in multiple start/stop mode

Reading Rate

1 reading every 1 s up to 1 reading every 24 hrs

Wrap Around

Yes

Start Modes

Immediate start

Delay start up to 18 months

Multiple pushbutton start/stop

Stop Modes

Manual through software

Timed (specific date and time)

Multiple Start/Stop Mode

Start and stop the device multiple times without having to download data or communicate with a  PC

Multiple Start/Stop Mode Activation

To start the device:

Press and hold the pushbutton for 5 s, the green LED will flash during this time.  The device has started logging.



To stop the device:

• Cold chain
• Refrigerator and freezer monitoring

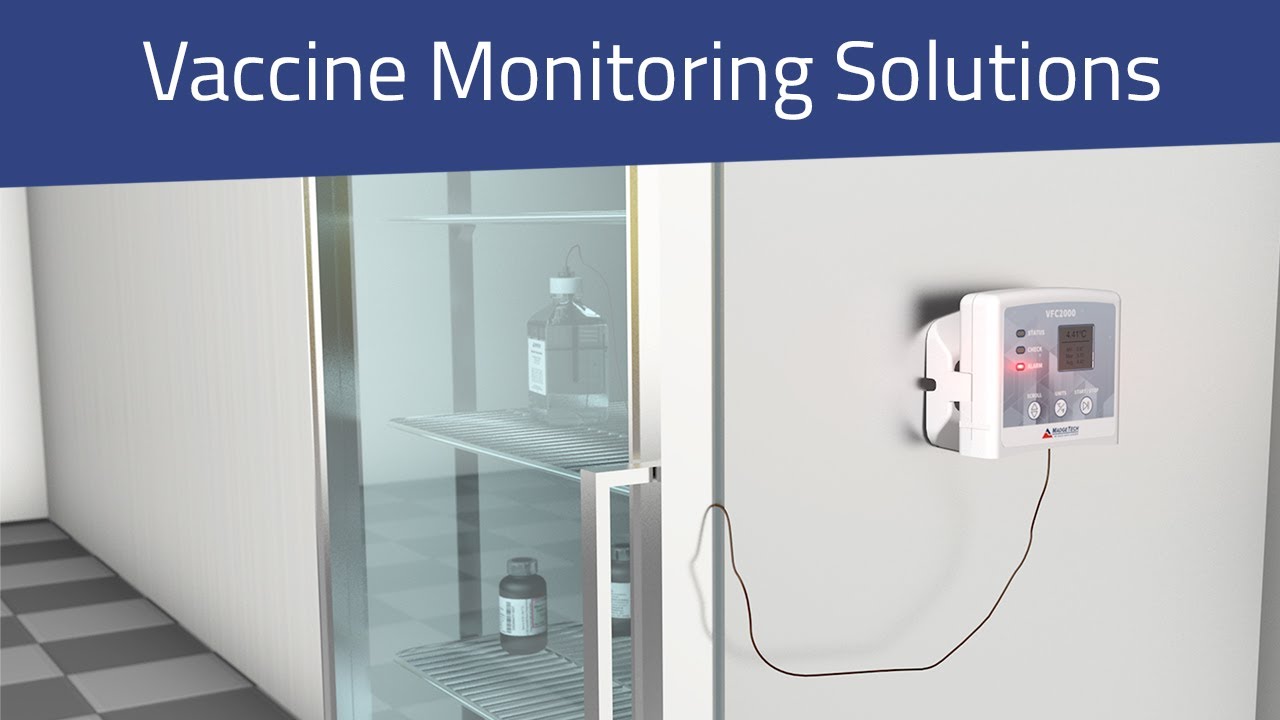

• Vaccine monitoring
• Warehouse mapping
• HVAC
• General purpose temperature recording

  • Thumbnail of document Data Sheet - Temp101A Data Logger
    Download

    Data Sheet - Temp101A Data Logger

    Download
  • Thumbnail of document Manual - Temp101A Data Logger
    Download

    Manual - Temp101A Data Logger

    Download
