Starting at $2,556.00CAD

THERMOVAULTX Oven Temperature profiling System

An advanced temperature data logging system designed for oven profiling

Starting at

$2,556.00CAD

Have questions? We're here to help!

Have questions? We're here to help!

Used in

THERMOVAULTX Oven Temperature profiling System 12584

THERMOVAULTX Oven Temperature profiling System 01aad

THERMOVAULTX Oven Temperature profiling System 8ce4a

The ThermoVaultX Includes:

(1) TCTempX: Thermocouple-Based Temperature Data Logger

(1) Thermally Insulated Enclosure

(1) Type K Thermocouple

The ThermoVaultX represents an advanced temperature data logging system designed for oven profiling, featuring thermal insulation and relying on thermocouples. This robust device exhibits remarkable resilience, capable of enduring oven temperatures reaching 350°C (662°F) for a duration of up to 30 minutes when properly sealed. Its construction incorporates a stainless steel enclosure along with external thermocouple probes, ensuring precise temperature measurements with rapid response times.

Moreover, the ThermoVaultX seamlessly integrates with the latest MadgeTech 4 Software, simplifying tasks such as initiating, halting, and retrieving data. The software furnishes a user-friendly interface that offers graphical, tabular, and summary data for in-depth analysis, and allows for the customization of units for viewing engineering data.

• TCTempX Thermocouple-Based Temperature Data Logger

• Thermal Insulated Enclosure

• Type K Thermocouples

Remote Channel Temperature Calibrated Accuracy	Thermocouple Dependent
Remote Channel Temperature Resolution	Thermocouple Dependent
Remote Channel Temperature Range	Thermocouple Dependent
Internal Channel Temperature Calibrated Accuracy	±0.5 °C (0 °C to 50 °C)
Internal Channel Temperature Resolution	0.01 °C (0.018 °F)
Temperature
Required Interface Package	USB-A to micro USB cable
Operating Environment	See Data Sheet, 0 %RH to 95 %RH, non-condensing
Dimensions	9.1 in x 5.9 in x 2.45 in (231 mm x 149 mm x 62 mm) [Enclosure case only. Excludes handles, brackets and latches] 12.3 in x 6.65 in x 2.45 in (312 mm x 168 mm x 62 mm) [Includes handles, brackets and front enclosure latches]
Battery Life	18 months typical
Channels	4-Channel: 4 Internal & 4 Remote 8-Channel: 8 Internal & 8 Remote
Cold Junction Compensation	Automatic
Baud Rate	460,800 baud
Reading Rate	4 Hz up to 1 reading every 24 hours
Memory	4-Channel: 524,032 readings per channel 8-Channel: 262,016 readings per channel
General

Download
Data Sheet - THERMOVAULTX Oven Temperature profiling System
Download
Download
Manual - THERMOVAULTX Oven Temperature profiling System
Download

Accessories

Madgetech

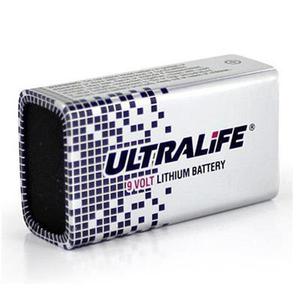

U9VL-J Lithium Battery
9.0 V, lithium battery, 1200 mAH
Buy now!
$23.25 CAD
Normally ships in 1-2 weeks
QTY:
Madgetech
USB Universal Power Adapter
Universal multiblade USB power adapter for the IFC406, RFC1000, RFC1000-CE, VTMS, and RF2000A
Buy now!
$42.00 CAD
Normally ships in 1-2 weeks
QTY:
Madgetech

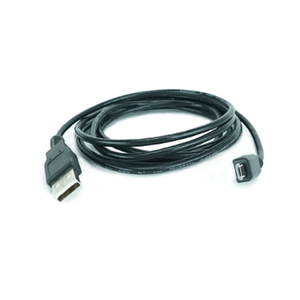

Micro USB Cable
Interface cable and replacement cable for the IFC406 and various data loggers
Buy now!
$15.00 CAD
Normally ships in 2-3 weeks
QTY:
Madgetech
Type K 72"/180" Glass Braided Thermocouple
24 AWG Glass Braided Thermocouple 4 pack.
Starting at
$148.50 CAD
Normally ships in 2-3 weeks
Configure
Madgetech

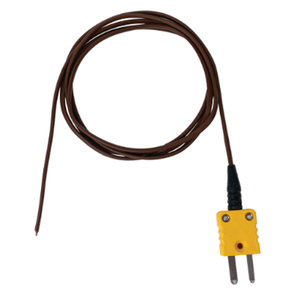

Type K Thermocouple with SMP Connector
36″, 72″, 3m, 5m, 300″, 50′ or 100′ Type K Thermocouple with SMP Connector
Starting at
$45.00 CAD
Normally ships in 2-3 weeks
Configure
Madgetech
Type K 36" Thermocouple 6" Sheath
36 in. Type K Thermocouple with Stainless Steel Sheath.
Buy now!
$112.50 CAD
Normally ships in 2-3 weeks
QTY:
Madgetech

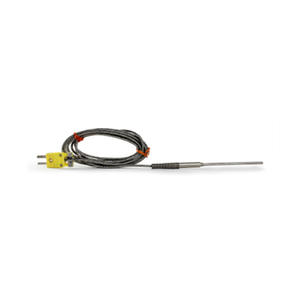

Type K 72" Thermocouple 3" sheath
72 in. Type K Thermocouple with Stainless Steel Sheath.
Buy now!
$148.50 CAD
Normally ships in 2-3 weeks
QTY:
Madgetech
Type K 72" Thermocouple 6" Sheath
72″ Type K Thermocouple with Stainless Steel Sheath.
Buy now!
$112.50 CAD
Normally ships in 2-3 weeks
QTY:
Madgetech
Type E 36"/72" Thermocouple with SMP
36″ or 72″ Type E Thermocouple with SMP Connector
Starting at
$45.00 CAD
Normally ships in 2-3 weeks
Configure
Madgetech

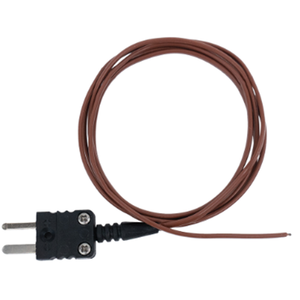

Type J 36"/72" Thermocouple with SMP
36″ or 72″ Type J thermocouple with SMP connector and PFA insulation
Starting at
$45.00 CAD
Normally ships in 2-3 weeks
Configure
Madgetech

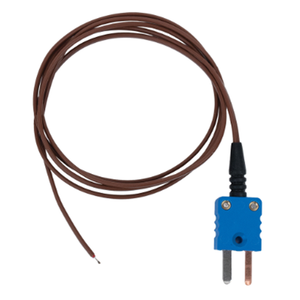

Type T 36"/72" Thermocouple with SMP
36″ or 72″ Type T thermocouple with SMP connector and PFA insulation
Starting at
$45.00 CAD
Normally ships in 2-3 weeks
Configure
