Bacharach

Tru Pointe Refrigerant Leak Detector

Low-cost detector for all CFCs, HFCs and HCFCs

This product is no longer available. Contact us at 800-567-8686 for alternative solutions.

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
Tru Pointe Refrigerant Leak Detector 02768

The Tru Pointe® is a low-cost handheld refrigerant leak detector that utilizes Bacharach’s patented heated diode sensor to pinpoint leaks of CFC, HFC and HCFC refrigerants. The Tru Pointe® offers two sensitivity modes to adapt to a variety of applications and refrigerants.

The Tru Pointe® has a long, flexible probe for detecting leaks in hard-to-reach areas and provides exceptional service life with approximately 1 year of sensor usage and 8+ hours of battery life. It also includes an auto-zeroing feature which allows for finding leaks in backgrounds where target gas is present. It comes with a 1 year warranty including sensor.

• Detects a broad range of refrigerants with Bacharach’s patented heated diode sensor technology
• Flexible probe (14 in.) for finding leaks in tight spaces
• Includes audible and incremental LED indicators and a speaker

Refrigerants DetectedAll CFC, HFC, HCFC refrigerants, including but not limited to: R-12, R-22, R-134a, R-404A, R-410A, R-502 and R-507
Sensitivity (per SAE J1627)0.5 oz./yr (14 g/yr) R-134a in normal sensitivity mode
Response TimeInstantaneous
Leak IndicatorsVisual (red LED), audible
Automatic Background AdjustmentYes
Power2 D batteries
Run Time11 hours in high sensitivity mode (typical)
20 hours in low sensitivity mode (typical)
Size (H x W x D)Unit: 9.5 x 2.12 x 2.4 in. (24.13 x 5.38 x 6.10 cm)
Probe: 14 in. (35.6 cm)
Weight1.6 lbs. (0.53 kg) including batteries
Sensor Life1 year (typical)
Operating Conditions32 to 122 °F (0 to 50 °C), 10 to 90% RH (non-condensing), 1 ATM
Warm-up Time10 seconds
ApprovalsCE mark
SAE J1627
Warranty1 year (including sensor)
Product Dimensions (L×W×H): Unit: 9.5" × 2.12" × 2.4" (24.13 × 5.38 x 6.1 cm) Probe: 14" (35.6 cm)
Status Indicator: Visual (red LED), audible
Altitude: 1 ATM
Humidity: 10 to 90% RH (non-condensing)
Ambient Temperature: 32 to 122 °F (0 to 50 °C)
Run Time: 11 hours in high sensitivity mode (typical) 20 hours in low sensitivity mode (typical)
Power: 2 D batteries
Response Time: Instantaneous
Sensitivity / Minimum Detection Limit: 0.5 oz/yr (14 g/yr) R-134a in normal sensitivity mode
Warranty: 1 Year (Including Sensor)
Approvals: CE, SAE J1627
Expected Sensor Service Life: 1 Year
Warm-Up Time: 10 Seconds
Background Adjustment: Automatic
Product Weight: 1.6 lbs. (0.53 kg) including batteries

The Tru Pointe® has a long, flexible probe for detecting leaks in hard-to-reach areas

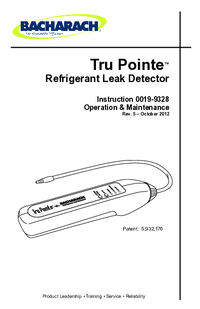

  • Thumbnail of document Manual - Tru Pointe Refrigerant Leak Detector
    Download

    Manual - Tru Pointe Refrigerant Leak Detector

    Download
  • Thumbnail of document Data Sheet - Tru Pointe Refrigerant Leak Detector
    Download

    Data Sheet - Tru Pointe Refrigerant Leak Detector

    Download
