38XR-A True-RMS Digital Multimeter with Temperature

True-RMS digital multimeter w/ optical PC interface for engineers designing & troubleshooting industrial automation & control systems

Buy now!

$550.19CAD

Have questions? We're here to help!

Call

QTY

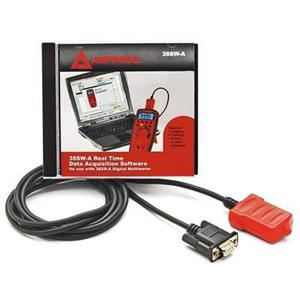

Used in

38 XR A True RMS Digital Multimeter with Temperature 03805

The Amprobe 38XR-A is a True-RMS digital multimeter with optical PC interface for engineers designing and troubleshooting industrial automation and control systems.

The 38XR-A comes with text leads with threaded alligator clips, temperature adaptor, K-Type thermocouple probe, spare fuse, one (1) 9 V battery (installed), user's manual, and a Magne-Grip Holster with magnetic hanging strap.

• Backlight, True-rms with with optical PC interface
• Frequency to 10 MHz,capacitance to 400 µF, temperature to 2372°F
• Bright blue backlight
• 10 A AC/DC, fully safety fused
• Continuity beeper
• Min/Max, average, relative, peak, and data hold
• Auto power off to save battery life
• Separate door for easy battery and fuse access
• Magne-Grip™ Holster with magnetic hanging strap
• Autoranging; display: 4-3/4 digit LCD, 10,000 counts with 41-segment analog bar graph
• Display update rate 2/s, nominal
• Power battery 9 V NEDA 1604, JIS 006P, IEC 6F22
• Operating temperature: 0°C - 45°C at < 70% RH
• Input lead warning

Resistance accuracy	1000 O to 1000 kO ranges: ± (0.5 % rdg + 8 dgts) 10 MO range: ± (1.0 % rdg + 10 dgts) 40 MO range: ± (2.0 % rdg + 10 dgts)
Resistance ranges	1000 O 10 kO 100 kO 1000 kO 10 MO 40 MO
AC Current (45 Hz to 1 kHz) True-rms resolution	0.01 µA
AC Current (True-rms) ( AC + DC) (45 Hz – 1 kHz) accuracy	100 µA to 100 mA ranges: ± (1.5 % rdg + 10 dgts) 400 mA range: ± (2.0 % rdg + 10 dgts) 10 A range: ± (2.5 % rdg + 10 dgts)
AC Current (True-rms) ( AC + DC) (45 Hz – 1 kHz) ranges	100 µA, 1000 µA, 10 mA, 100 mA, 400 mA, 10 A
DC Current resolution	0.01 µA
DC Current accuracy	100 µA range: ± (0.5 % rdg + 10 dgt) 1000 uA to 400 mA ranges: ± (0.5 % rdg + 5 dgts) 10 A range: ± (1.5 % rdg + 10 dgt)
DC Current ranges	100 µA, 1000 µA, 10 mA, 100 mA, 400 mA, 10 A
AC + DC Voltage (45 Hz to 2 kHz)	1000 mV, 10 V, 100 V, 750 V
AC coupled	True RMS specified from 5 % to 100 % of range
AC Voltage (45 Hz to 2 kHz) True-rms accuracy	750 V range: 45 to 1 kHz: ± (2.0 % rdg + 10 dgts) All other ranges, 45 to 500 Hz: ± (1.2 % rdg + 10 dgts) All other ranges, 500 to 2 kHz: ± (2.0 % rdg + 10 dgts)
AC Voltage (45 Hz to 2 kHz) True-rms ranges	1000 mV, 10 V, 100 V, 750 V
DC Voltage resolution	100 µV
DC Voltage accuracy	All ranges ± (0.25 % rdg + 5 dgt)
DC Voltage ranges	1000 mV, 10 V, 100 V, 1000 V
dBm	-13 dBm → + 50 dBm
Inductance	–
Logic test	–
Duty cycle	0.00 % → 90.0 %
Temperature	2372 °F (1300 °C)
Frequency	100.00 Hz, 1.0000 kHz, 10.000 kHz, 100.00 kHz, 1.0000 MHz, 10.000 MHz
Capacitance	40.00 nF. 400.0 nF, 4.000 µF, 40.00 µF, 400.0 µF
VolTect™ Non-Contact Voltage Detection	–
Diode	•
Continuity	•
Resistance	1000.0 O, 10.000 kO, 100.00 kO, 1000.0 kO, 10.00 MO , 40.00 MO
AC Current	100.0 µA, 1.000 µA, 10.00 mA, 100.0 mA, 400.0 mA, 10.00 A
DC Current	100.0 µA, 1.000 µA, 10.00 mA, 100.0 mA, 400.0 mA, 10.00 A
AC Voltage	1.000 mV, 10.00 V, 100.0 V, 1000 V
DC Voltage	1.000 mV, 10.00 V, 100.0 V, 1000 V
