EA2/34-OL-HYG Online Dew Point Hygrometer
Panel or bench mount hygrometer with digital display, analog and digital outputs and dual alarm feature
A panel- or bench-mounting hygrometer with digital display, analog and digital outputs and dual alarm feature, offering excellent reliability and repeatability.
• Dew point or ppm moisture content
• Analog and digital outputs
• IP66 (NEMA 4) sensor and IP65 (NEMA 12) Monitor (front panel only)
• Excellent sensor protection
• Dual alarms
• Clear and easy to read display
| Performance Specifications | |
| Measurement Range | -100 to +20°C dew point 0-3000 ppmV ppmV output or non-standard dew-point range must be specifi ed at time of order |
| Accuracy (dewpoint) | ±2°Cdp (±2°C dew point) |
| Response Time | 5 mins to T95 (dry to wet) |
| Repeatability | 0.5°Cdp |
| Electrical Specifications | |
| Output Signal | 4-20 or 0-20 mA, RS232 |
| Supply Voltage | 85 to 264 V AC, 50/60 Hz |
| Load Resistance | Max 250 Ω @ 12 V 500 Ω @ 24 V |
| Current Consumption | 60 mA max |
| Operating Specifications | |
| Operating Humidity | 0–100% RH |
| Operating Temperature Sensor | -40 to +60°C |
| Monitor | 0 to 50°C |
| Compensated Temperature Range: | -20 to +50°C NOTE: The transmitter accuracy statement is only valid for the temperature range: -20/+50°C |
| Storage Temperature Monitor | -40 to +85°C |
| Sensor | -40 to +60°C |
| Mechanical Specification | |
| Ingress Protection | Monitor: IP65 (NEMA 12) front panel only Sensor: IP66 (NEMA 4) |
| Dimensions | Monitor:1/8 DIN case, 96 x 48 x 85mm incl. clearance (w x h x d) Sensor: 132 x 27 A/F mm (length x diameter across hex fl ats) |
| Filter | HDPE |
| Weight | Monitor: ~210g 150g |
| Electrical Connections | Sensor cell supplied |
| Alarm | Front panel configuration of alarm points |
| Sensor Cable | 0.8m supplied as standard max 800m |
| Mains Cable | 2m cable supplied |
Item
Description
Availability
Price
Accessories
Pack of 10 replacement HDPE guards for protection against fine particulates <10µm
Normally ships in 2-3 Weeks
Call Today!
800-567-8686
Pack of 10 particulate filter cartridges for protection against fine particulates < 0.1µm for 5/8" sampler kits
Normally ships in 2-3 Weeks
Call Today!
800-567-8686

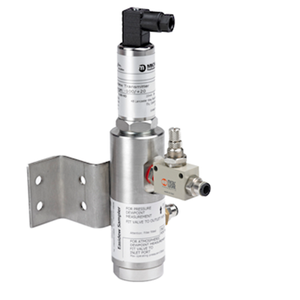

A low-cost, self-contained sampling system, w/ filtration & flow control, for measurement of either pressure or atmospheric dew points
Normally ships in 2-3 Weeks
Call Today!
800-567-8686
Additional/replacement transmitter labels (price per 2 off labels)
Normally ships in 2-3 Weeks
Call Today!
800-567-8686
Adapters
Cables
0.8m (2.62') length cable with mini-DIN mating socket
Normally ships in 2-3 Weeks
$111.00 CAD
2 m (6.56') length cable with mini-DIN mating socket
Normally ships in 2-3 Weeks
$122.00 CAD
10 m (32.8') length cable with mini-DIN mating socket
Normally ships in 4-6 Weeks
$231.00 CAD
Connection
5/8" Bonded Seal for process connection-pack of 5
Normally ships in 2-3 Weeks
Call Today!
800-567-8686
Electrical Accessories
Cable, 5m (16.4') length with M12 mating connector
Normally ships in 2-3 Weeks
Call Today!
800-567-8686
Monitors
Easidew online monitor with 24V DC power supply (installation must be in a safe area with a galvanic barrier)
Normally ships in 2-3 Weeks
Call Today!
800-567-8686
Sample Blocks
5/8" SS sample block with 1/8" NPT inlet & outlet ports
Normally ships in 2-3 Weeks
Call Today!
800-567-8686
Transmitters

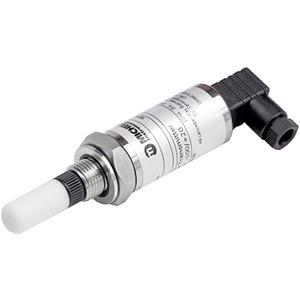

Moisture meter measuring dew point & moisture content, available w/ a range of process connections & electrical connectors
Normally ships in 2-3 Weeks
Call Today!
800-567-8686
Designed for simple installation and operation 3/4" process connection
Normally ships in 2-3 Weeks
Call Today!
800-567-8686
View All Part Numbers
