Element CO2 Wireless CO2, Humidity, and Temperature Data Logger

Wireless CO2, humidity and temperature data logger with LCD and remote sensor

Buy now!

$1,153.50CAD

Have questions? We're here to help!

Call

QTY

Used in

Element CO2 Wireless CO2 Humidity and Temperature Data Logger 01746

The Element CO2 is a wireless data logger that measures and records carbon dioxide, humidity and temperature levels for agricultural applications. It’s the all-in-one solution for acquiring a complete environmental profile.

The Element CO2 comes with a 16 ft. cable connected to the CO2 sensor, making it ideal for placement around grow rooms or greenhouses to ensure optimum levels. This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the Element CO2 will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.

The Element CO2 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The Element CO2 is also MadgeTech Cloud Services ready, providing users the ability to monitor real-time data remotely on any internet enabled device, from anywhere in the world.

• Battery life indicator
• Digital display
• Direct USB interface
• AC power connection via USB
• Configurable alarms
• Ability to manually reset statistics
• 16 month battery life at 10 min reading rate

Internal Channel Temperature Sensor	Silicon
Internal Channel Temperature Range	0 °C to +55 °C (+32 °F to +131 °F)
Internal Channel Temperature Resolution	0.08 °C (0.144 °F)
Internal Channel Temperature Calibrated Accuracy	±1.0 °C
Humidity Sensor	Silicon
Humidity Range	0 %RH to 95 %RH
Humidity Resolution	0.08 %RH
Humidity Calibrated Accuracy	±3.0 %RH from 25 %RH to 75 %RH @ 25 °C, 7 %RH otherwise
Carbon Dioxide Range	0 ppm to 200,000 ppm
Carbon Dioxide Resolution	10 ppm
Carbon Dioxide Accuracy	70 ppm ± 5% of the reading
RF Baud Rate	250,000
Output Power	+0 dBm typical
Receiver Sensitivity	-95 dBm typical
Typical Outdoors Lines of Sight	Up to 2000 ft
Typical Indoors Lines of Sight	Up to 500 ft
Memory	10,752 readings per channel
Reading Rate	1 reading every second up to 1 reading every 24 hours
Baud Rate	250,000
LED Indicators	Green, Blue & Red
Battery Life	16 months typical at a 10 minute reading rate
Material	ABS plastic
Dimensions	Data logger: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) Sensor: 1.98 in x 1.98 in x 1.15 in (50.3 mm x 50.3 mm x 29.2 mm) Cable Length: 16 ft (192 in)
IP Rating	IP22
Operating Environment	0 °C to +55 °C (+32 °F to +131 °F), 0 %RH to 95 %RH non-condensing, 0.002 PSIA to 100 PSIA

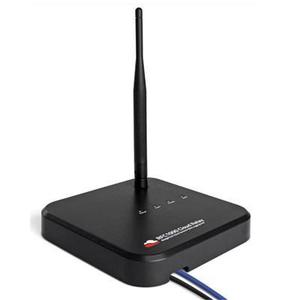

Required Interface Package	RFC1000
Approvals	US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

• Incubator monitoring
• Building studies (hospitals, schools, offices)
• HVAC system yesting
• Agricultural studies
• Indoor air quality (IAQ) studies

Download
Data Sheet - Element CO2 Wireless CO2, Humidity, and Temperature Data Logger
Download
Download
Manual - Element CO2 Wireless CO2, Humidity, and Temperature Data Logger
Download
