Dwyer

8912 Thermo-Anemometer

Measures air velocity, air volume, temperature, humidity and BTU

This product is no longer sold. View active Product

Have questions? We're here to help!
Have questions? We're here to help!

Measure air velocity, air volume, temperature, humidity, and BTU with the Model 8912 Vane Thermo-Anemometer. The large 1.7 in (44 mm) display allows users to easily view readings. User-selectable wind speed units include ft/min, m/s, knots, mph, and km/h. In addition to these functions, the 8912 is capable of measuring relative humidity, wet bulb temperature, dew point, and BTU capacity. A built-in sensor records ambient temperature in °F or °C. Model 8912 features include data hold, the ability to record minimum, maximum, and average readings on a single point, and an RS-232 interface setting. The Model 8912 also features a detachable probe for easy replacement, if necessary. The units can record and average up to 2 hours of data while displaying the continuous running average. Each unit includes hard carrying case, batteries, calibration data tag and instruction manual. This versatile meter is perfect for HVAC inspection, energy audits and balancing applications.

• Data hold
• Record minimum, maximum, and average readings
• 1.8 in (45 mm) display
• Detachable probe for easy replacement

AIR VELOCITY
Range188 ft/min - 6299 ft/min (0.6 m/s - 32 m/s)
Accuracy± 5% of reading or last significant digit (whichever is greater)
Resolution0.1 ft/min (0.1 m/s)
Response Time1 s
TEMPERATURE
Range-4°F - 140°F (-20°C - 60°C)
Accuracy± 1°F (± 0.6°C)
Resolution0.1°F/°C
Response Time60 s
RELATIVE HUMIDITY
Range0% - 100%
Accuracy± 3% @ 25°C from 10% - 90% RH.
Outside this range: ± 5%
Resolution0.10%
Response Time60 s
AIR VOLUME
Range0 to 99999 (CFM or m3/s)
Accuracy± 5% of reading or last significant digit (whichever is greater)
Resolution0.1 (0 to 9999.9) or 1 (10000 to 99999)
Response Time1 s
WET BULB
Range-7.6°F - 158°F (-22°C - 70°C)
Resolution0.1°F/°C
METER
Display1 in x 1.8 in (26 mm x 45 mm)
Serial Communications9600 bps, 8 data bits, no parity
Power RequirementsFour (4) AAA alkaline batteries, included, user replaceable
Battery Life100 hrs
Vane Diameter3 in (77 mm)
Weight6 oz (170 g)
Agency ApprovalsCE

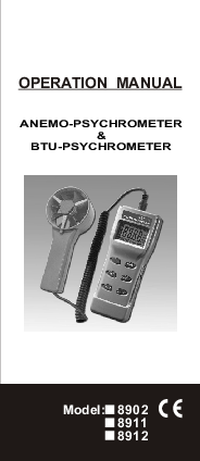

  • Thumbnail of document Manual - 8912 Thermo-Anemometer
    Download

    Manual - 8912 Thermo-Anemometer

    Download
  • Thumbnail of document Data Sheet - 8912 Thermo-Anemometer
    Download

    Data Sheet - 8912 Thermo-Anemometer

    Download
