MS Series Mass Flow Meters for Corrosive Gases

Name: MS Series Mass Flow Meters for Corrosive Gases
SKU: placeholder-ms-series-mass-flow-meters-for-corrosive-gases
Price: 2840.00 CAD
Availability: InStock

An extremely fast, accurate, repeatable, and customizable mass flow meter for use with corrosive gases

Starting at

$2,840.00CAD

Have questions? We're here to help!

Call

Configure

Used in

MS Series Mass Flow Meters for Corrosive Gases 03748

Measure mass flow, volumetric flow, pressure and temperature in a compact device that will be the star of your lab. Gas mass flow meters from Alicat are highly flexible instruments that can be used with many gases across a very wide range. As soon as you turn on the flow meter, it’s ready to display live flow, pressure and temperature readings in your choice of engineering units. Measure flows with NIST-traceable accuracy for a variety of gases down to 1/200th of full scale, or define your own gas composition with COMPOSER™.

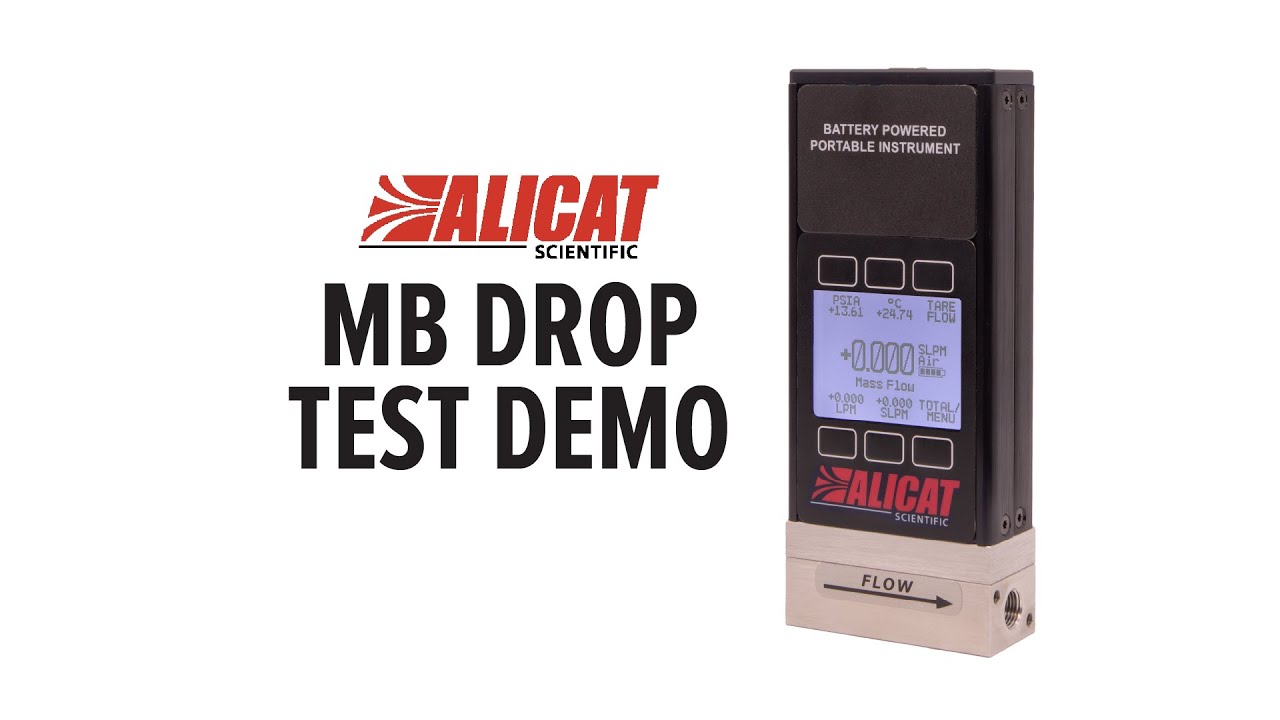

The MS series is suitable for most flow measurement applications involving aggressive or corrosive gases. In this configuration, the flow body and sensor are upgraded to 316L stainless steel and the elastomers are FFKM. The MS series is also available in a battery-powered portable configuration (MBS).

Alicat’s MS series mass flow meters feature dual digital and analog communications by default and can be ordered with Ethernet/IP, EtherCAT, DeviceNet, Profibus or Modbus (RTU and TCP/IP) communications for easy integration into your digital industrial or laboratory network. Other build options include your choice of display, process connections, elastomeres as well as performance options. Need further customization? Contact us and we’d be happy to help you build the instrument you need.

Each flow meter comes with a NIST-traceable calibration certificate and an Alicat operating manual. Power supply sold separately.

Other Alicat Mass Flow Meters
The M series is suitable for most flow measurement applications with non-corrosive gases, with models that can measure flow rates as high as 5000 slpm or as low as 0.0025 sccm. The MW, or “Whisper”, is best for low pressure drop applications, minimizing system impact and enabling flow measurement at near-atmospheric pressures or when there is little available system pressure. The versatile MQ flow meter is useful when your line pressures are high (160 - 320 PSIG), reducing the time it takes to verify or validate flows.

• For use with aggressive and corrosive gases
• Measures mass flow, volumetric flow, line pressure, and line temperature
• Over 30 on-board user selectable gas calibrations
• Fully-functional digital display with push button controls
• 100:1 turndown ratio
• Equipped with multiple analog outputs
• Quick response time of < 10 ms
• User-selectable engineering units
• Digital and analog outputs
• Multiple build and performance options
• NIST traceable
• Lifetime warranty

Typical Measurement Response Time	5 - 10 ms
Compatible Gases	130
Operating Temperature	-10°C - 60°C
Max Internal Pressure (Static)	145 PSIG (160 PSIA)
Max Differential Pressure (Inlet to Outlet)	75 PSID
Proof Pressure	175 PSIG (190 PSIA)
STP/NTP Default	25°C & 1 atm STP/0°C & 1 atm NTP
Ingress Protection	IP40
Wetted Materials	316L SS, FFKM (Kalrez) standard; Viton, EPDM, Buna, Neoprene as needed for some gases
Maximum Available Range	0 - 5000 slpm
Minimum Available Range	0 - 0.5 sccm / 0 - 500 sμlm
Turndown Ratio	100:1
Standard Accuracy Calibration	+/- (0.8% of the reading + 0.2% of FS)
Optional High-Accuracy Calibration	+/- (0.4% of the reading + 0.2% of FS)
Repeatability	0.2% of FS
