Two-way wireless CO2, humidity & temperature data logger w/ LCD features continuous monitoring & configurable alarms

This product is no longer available. Contact us at 800-567-8686 for alternative solutions.

Have questions? We're here to help!

Call

RFCO2 RH Temp2000 A Wireless Air Quality Data Logger 01748

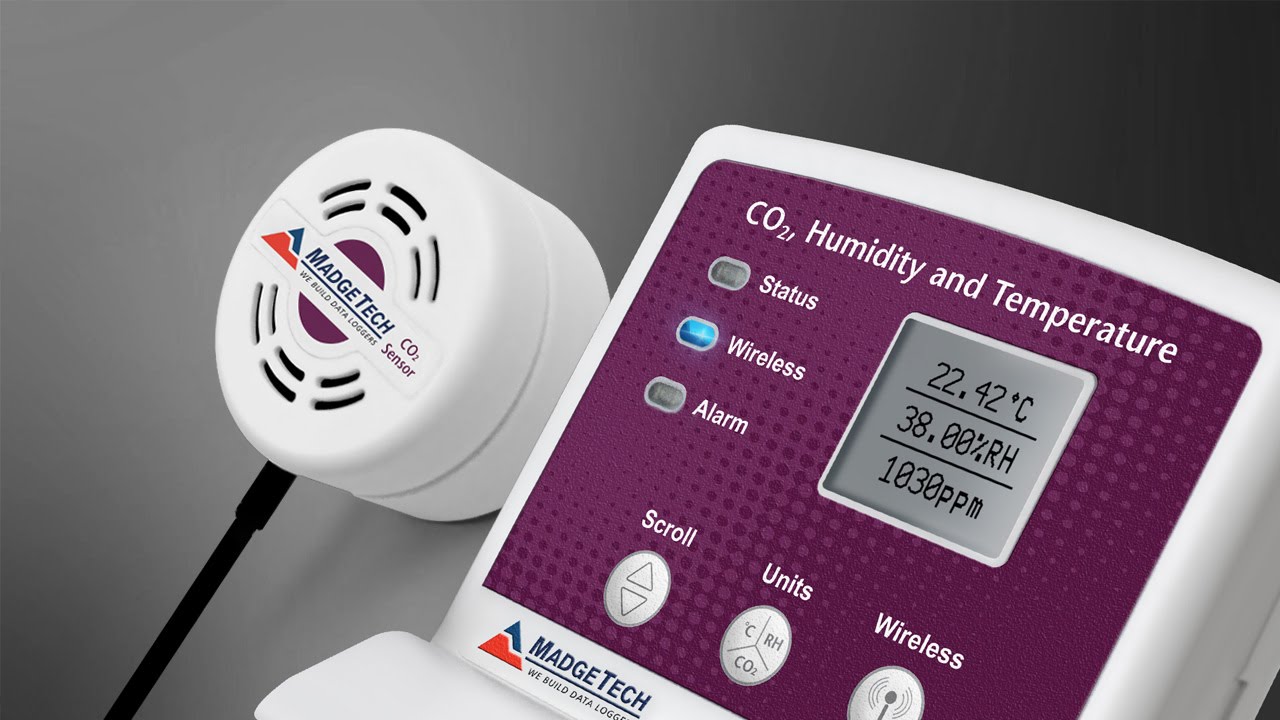

The RFCO2RHTemp2000A is a wireless data logger that measures and records carbon dioxide, humidity and temperature. It’s the all-in-one solution for acquiring a complete environmental profile.

The RFCO2RHTemp2000A comes with a 16 ft. cable connected to the CO2 sensor, making it ideal for placement within enclosed environments. This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFCO2RHTemp2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.

The RFCO2RHTemp2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The RFCO2RHTemp2000A is MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.

• Battery life indicator
• Digital display
• Direct USB interface
• AC power connection via USB
• Configurable alarms
• Ability to manually reset statistics
• 16 month battery life at 10 min reading rate

Internal Channel Temperature Sensor	Silicon
Internal Channel Temperature Range	0 °C to +55 °C (+32 °F to +131 °F)
Internal Channel Temperature Resolution	0.08 °C (0.144 °F)
Internal Channel Temperature Calibrated Accuracy	±1.0 °C
Humidity Sensor	Silicon
Humidity Range	0 %RH to 95 %RH
Humidity Resolution	0.08 %RH
Humidity Calibrated Accuracy	±3.0 %RH from 25 %RH to 75 %RH @ 25 °C, 7 %RH otherwise
Carbon Dioxide Range	0 ppm to 200,000 ppm
Carbon Dioxide Resolution	10 ppm
Carbon Dioxide Accuracy	70 ppm ± 5% of the reading
RF Baud Rate	250,000
Output Power	+0 dBm typical
Receiver Sensitivity	-95 dBm typical
Typical Outdoors Lines of Sight	Up to 2000 ft
Typical Indoors Lines of Sight	Up to 500 ft
Memory	10,752 readings per channel
Reading Rate	1 reading every second up to 1 reading every 24 hours
Baud Rate	250,000
LED Indicators	Green, Blue & Red
Battery Life	16 months typical at a 10 minute reading rate
Material	ABS plastic
Dimensions	Data logger: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) Sensor: 1.98 in x 1.98 in x 1.15 in (50.3 mm x 50.3 mm x 29.2 mm) Cable Length: 16 ft (192 in)
IP Rating	IP22
Operating Environment	0 °C to +55 °C (+32 °F to +131 °F), 0 %RH to 95 %RH non-condensing, 0.002 PSIA to 100 PSIA
Required Interface Package	RFC1000
Approvals	US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

Temperature
Temperature Sensor	Silicon
Measurement Range	0°C - 55°C (32°F - 131°F)
Measurement Resolution	0.08°C (0.144°F)
Calibrated Accuracy	± 1.0°C
Humidity
Humidity Sensor	Silicon
Measurement Range	0% RH - 95% RH
Measurement Resolution	0.08% RH
Calibrated Accuracy	± 3.0% RH from 25% RH - 75% RH @ 25°C, 7% RH otherwise
Carbon Dioxide
Measurement Range	0 ppm - 200,000 ppm
Measurement Resolution	10 ppm
Calibrated Accuracy	70 ppm ± 5% of the reading
Sensor Warm Up Time	30 s

• Incubator monitoring
• Building studies (hospitals, schools, offices)
• HVAC system testing
• Agricultural studies
• Indoor air quality (IAQ) studies
