RFTCTemp2000A Wireless Thermocouple Temperature Data Logger

Name: RFTCTemp2000A Wireless Thermocouple Temperature Data Logger
Brand: Madgetech
SKU: placeholder-rftctemp2000a-wireless-thermocouple-temperature-data-logger
Price: 493.50 CAD
Availability: InStock

Two-way wireless thermocouple based temperature data logger featuring a large LCD screen

Starting at

$493.50CAD

Have questions? We're here to help!

Call

Configure

Used in

RFTC Temp2000 A Wireless Thermocouple Temperature Data Logger 01754

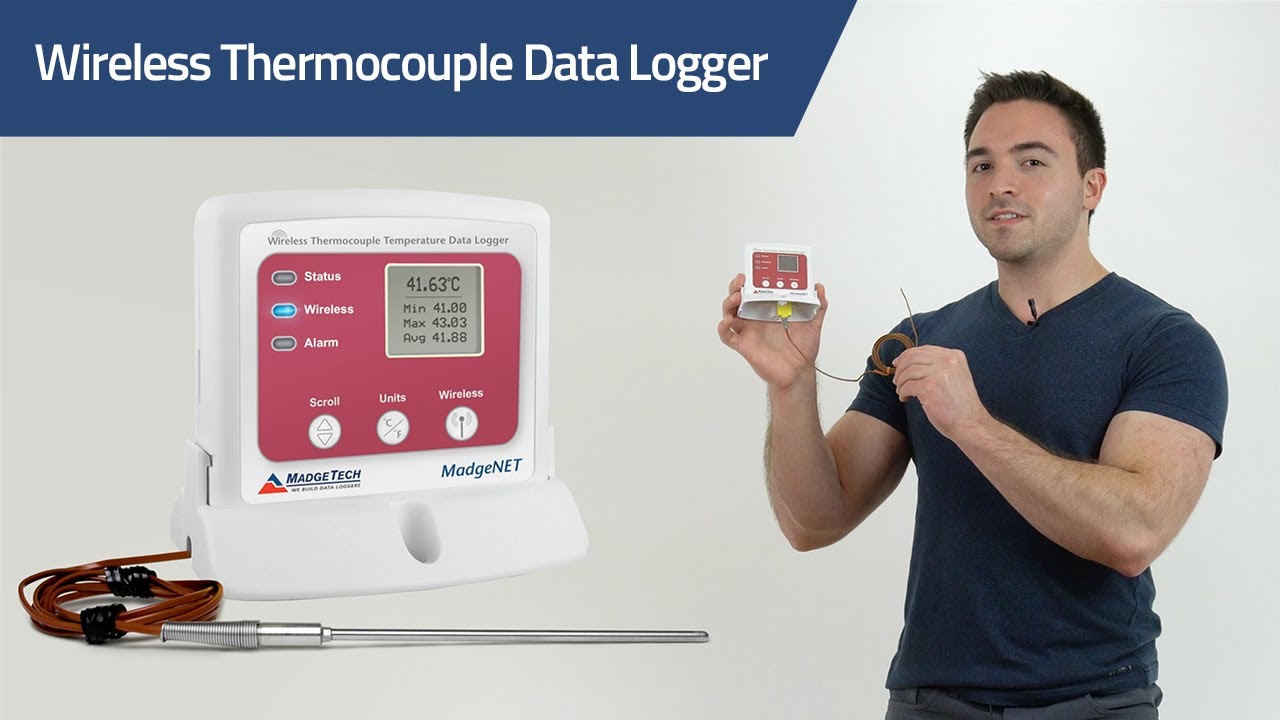

The RFTCTemp2000A is a wireless thermocouple-based temperature data logger (probe sold separately). Ideal for monitoring ambient and remote temperature, the RFTCTemp2000A accepts a variety of thermocouples and is designed with a built-in temperature sensor for cold junction compensation.

This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFTCTemp2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.The RFTCTemp2000A is available with mini-plug (RFTCTemp2000A-MP) or terminal block (RFTCTemp2000A-TB) connector.

The RFTCTemp2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The RFTCTemp2000A is also MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.

• Wireless two-way communication
• Ambient and thermocouple temperature monitoring
• View data in real time
• Three (3) year battery life
• Battery life indicator
• Field Upgradeable
• Audible and LED alarm indicators
• Trigger settings
• Cumulative alarm delay

General
Memory	16,128 readings
Reading Rate	1 reading every second up to 1 reading every 24 hours
Baud Rate	250,000
LED Indicators	Green, Blue & Red
Battery Life	3 years typical at a 1 minute reading rate
Material	ABS Plastic
Dimensions	3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
IP Rating	IP22
Operating Environment	-20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package	RFC1000
Approvals	US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)
Temperature
External Temperature Sensor	Thermocouple types: J, K, T, E, R, S, B, N
External Temperature Range	-210 °C to +1300 °C (-410 °F to +2372 °F) (Probe Dependent)
External Temperature Resolution	0.1 °C (0.18 °F) (Probe Dependent)
External Temperature Calibrated Accuracy	±0.5 °C (± 0.9 °F) (Probe Dependent)
Internal Temperature Sensor	Internal Semiconductor
Wireless
RF Carrier Frequency	2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication.
Output Power	+0 dBm typical
Receiver Sensitivity	-95 dBm typical
Typical outdoors Line of sight	Up to 2000 ft
Typical Indoors line of sight	Up to 500 ft

• Clean rooms
• Oven temperature monitoring
• Laboratories and hospitals
• Medical and pharmaceutical
• Warehouse mapping
• Storage of perishable goods
• Chemical storage
• Incubator monitoring
• Refrigerator and freezers
